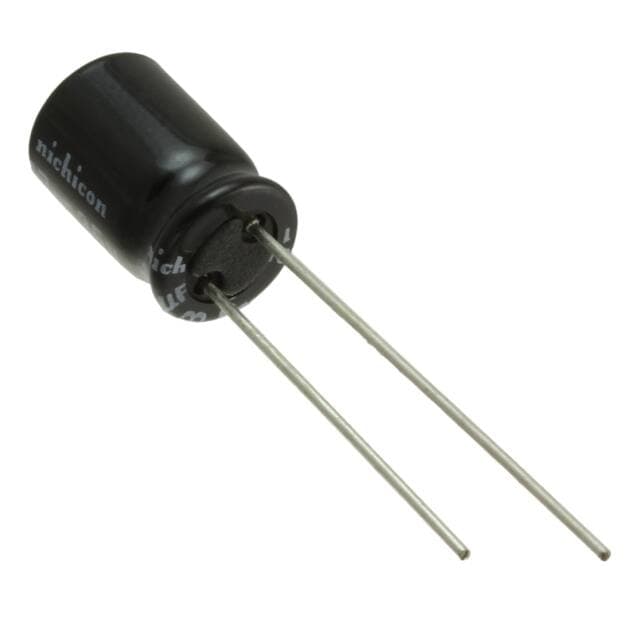

NICHICON UHD1H101MPD1TD
Manufacturer No:
UHD1H101MPD1TD
Manufacturer:
Package:
Radial, Can
Description:
UHD 100?F Capacitor ±20% Tape & Box (TB) Through Hole 506.8mA 0.315Dia 8.00mm -40°C~105°C Polar 3.5052mm Radial, Can
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
UHD1H101MPD1TD information
NICHICON UHD1H101MPD1TD technical specifications, attributes, parameters and parts with similar specifications to NICHICON UHD1H101MPD1TD.
- Type
- Parameter
- Factory Lead Time
- 19 Weeks
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Package / Case
- Radial, Can
- Terminal Shape
- WIRE
- Number of Pins
- 2
- Dielectric Material
- Aluminium
- Operating Temperature
- -40°C~105°C
- Packaging
- Tape & Box (TB)
- Series
- UHD
- Published
- 2007
- Size / Dimension
- 0.315Dia 8.00mm
- Tolerance
- ±20%
- JESD-609 Code
- e3
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 2
- ECCN Code
- EAR99
- Terminal Finish
- Tin (Sn)
- Applications
- General Purpose
- Capacitance
- 100?F
- Voltage - Rated DC
- 50V
- Terminal Pitch
- 3.5mm
- Lead Pitch
- 3.5052mm
- Lead Spacing
- 0.138 3.50mm
- Lifetime @ Temp
- 3000 Hrs @ 105°C
- Ripple Current
- 506.8mA
- Polarization
- Polar
- Life (Hours)
- 3000 hours
- Impedance
- 74mOhm
- Ripple Current @ Low Frequency
- 506.8mA @ 120Hz
- Ripple Current @ High Frequency
- 724mA @ 100kHz
- Diameter
- 8mm
- Height
- 11.5mm
- Height Seated (Max)
- 0.512 13.00mm
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for NICHICON UHD1H101MPD1TD.
Datasheets:
UHD1H101MPD1TD Overview
Full charge should result in a ripple current of 724mA @ 100kHz.If the charge is low, ripple current is 506.8mA @ 120Hz.Keep your seated height below 0.512 13.00mm.A voltage of 50V DC is used to operate this capacitor.The maximum efficiency can be achieved by maintaining -40°C~105°C as the operating temperature.
UHD1H101MPD1TD Features
the ripple current is 724mA @ 100kHz.
the ripple current is 506.8mA @ 120Hz.
voltage - Rated DC of 50V
an operating temperature of -40°C~105°C
UHD1H101MPD1TD Applications
There are a lot of Nichicon
UHD1H101MPD1TD applications of aluminum electrolytic capacitors.
- Power supplies
- Computer motherboards
- Uninterruptible power supplies
- Frequency converters
- Computer
- Telecommunication
- Industrial systems
- Smoothing and filtering applications
- Standard and switched mode power supplies
- Energy storage in pulse systems
