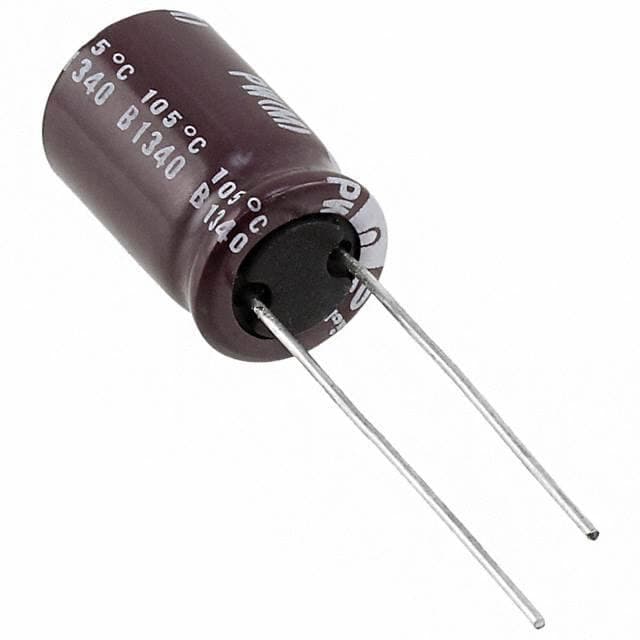

Nichicon UPW1E471MPD1TD

Manufacturer No:

UPW1E471MPD1TD

Manufacturer:

Nichicon

Package:

Radial, Can

Description:

UPW 470?F Capacitor ±20% Cut Tape (CT) Through Hole 1.05A 0.394Dia 10.00mm -55°C~105°C Polar 5mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UPW1E471MPD1TD information

Nichicon UPW1E471MPD1TD technical specifications, attributes, parameters and parts with similar specifications to Nichicon UPW1E471MPD1TD.

Type
Parameter

Factory Lead Time
19 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Terminal Shape
WIRE

Number of Pins
2

Dielectric Material
Aluminium

Weight
9.071847g

Operating Temperature
-55°C~105°C

Packaging
Cut Tape (CT)

Series
UPW

Published
2009

Size / Dimension
0.394Dia 10.00mm

Tolerance
±20%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Radial

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Applications
General Purpose

Capacitance
470?F

Packing Method
AMMO PACK

Lead Pitch
5mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

ESR (Equivalent Series Resistance)
130mOhm

Lead Spacing
0.197 5.00mm

Lead Diameter
600 ?m

Lifetime @ Temp
5000 Hrs @ 105°C

Ripple Current
1.05A

Polarization
Polar

Life (Hours)
5000 hours

Tan Delta
0.14

Impedance
68mOhm

Ripple Current @ Low Frequency
787.5mA @ 120Hz

Ripple Current @ High Frequency
1.05A @ 100kHz

Diameter
10mm

Height
16mm

Height Seated (Max)
0.650 16.50mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Nichicon UPW1E471MPD1TD.

UPW1E471MPD1TD Overview

At full charge, the ripple current is 1.05A @ 100kHz.It is necessary to provide the ESR (Equivalent Series Resistance) of 130mOhm so that it can fully perform its functions.The ripple current is 787.5mA @ 120Hz at the lowest charge.It is recommended to keep the height seated (Max) below 0.650 16.50mm.The capacitor operates at a voltage of 25V - Rated DC.For high efficiency, the operating temperature should be -55°C~105°C.

UPW1E471MPD1TD Features

the ripple current is 1.05A @ 100kHz.
the ripple current is 787.5mA @ 120Hz.
voltage - Rated DC of 25V
an operating temperature of -55°C~105°C

UPW1E471MPD1TD Applications

There are a lot of Nichicon
UPW1E471MPD1TD applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
