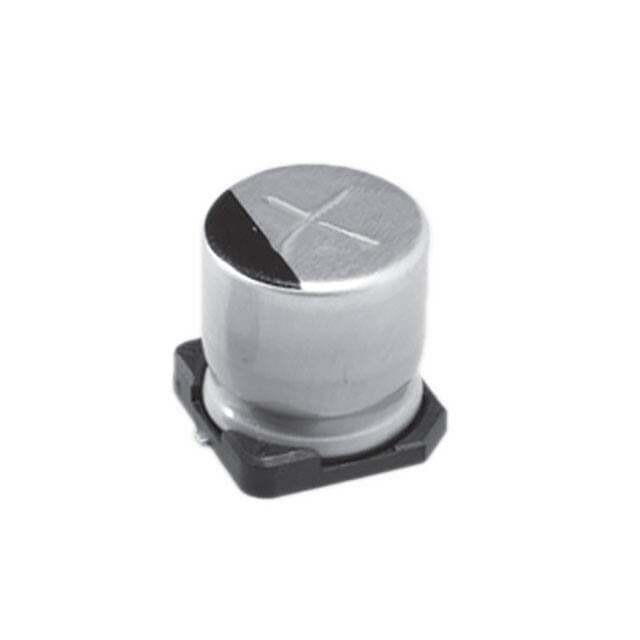

Nichicon UCV1V681MNL1GS
Nichicon UCV1V681MNL1GS

Nichicon UCV1V681MNL1GS

Manufacturer No:

UCV1V681MNL1GS

Manufacturer:

Nichicon

Package:

Radial, Can - SMD

Description:

UCV 680?F Capacitor ±20% Tape & Reel (TR) Surface Mount 595mA 0.394Dia 10.00mm -55°C~105°C Polar Radial, Can - SMD

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UCV1V681MNL1GS information

Nichicon UCV1V681MNL1GS technical specifications, attributes, parameters and parts with similar specifications to Nichicon UCV1V681MNL1GS.

  • Type
  • Parameter
  • Factory Lead Time
  • 17 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • Radial, Can - SMD
  • Surface Mount Land Size
  • 0.406Lx0.406W 10.30mmx10.30mm
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • UCV
  • Published
  • 2015
  • Size / Dimension
  • 0.394Dia 10.00mm
  • Tolerance
  • ±20%
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Applications
  • General Purpose
  • Voltage - Rated
  • 35V
  • Capacitance
  • 680?F
  • Lifetime @ Temp
  • 2000 Hrs @ 105°C
  • Ripple Current
  • 595mA
  • Polarization
  • Polar
  • Life (Hours)
  • 2000 hours
  • Impedance
  • 60mOhm
  • Ripple Current @ Low Frequency
  • 595mA @ 120Hz
  • Ripple Current @ High Frequency
  • 1.19A @ 100kHz
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Nichicon UCV1V681MNL1GS.

Datasheets:

UCV1V681MNL1GS Overview


As far as the ripple current is concerned, it is 1.19A @ 100kHz at full charge.As far as the ripple current is concerned, it is 595mA @ 120Hz at the lowest charge.The height seated (Max) should be kept below 0.413 10.50mm.The operating temperature should be maintained at -55°C~105°C for high efficiency.

UCV1V681MNL1GS Features


the ripple current is 1.19A @ 100kHz.
the ripple current is 595mA @ 120Hz.
an operating temperature of -55°C~105°C


UCV1V681MNL1GS Applications


There are a lot of Nichicon
UCV1V681MNL1GS applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
