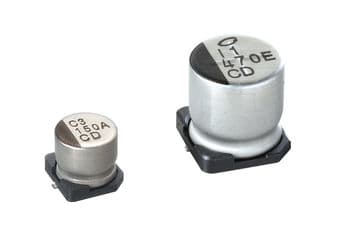

NICHICON UCD0J222MNL1GS
NICHICON UCD0J222MNL1GS

NICHICON UCD0J222MNL1GS

Manufacturer No:

UCD0J222MNL1GS

Manufacturer:

NICHICON

Package:

Radial, Can - SMD

Description:

UCD 2200?F Capacitor ±20% Tape & Reel (TR) Surface Mount 950mA 0.394Dia 10.00mm -55°C~105°C Polar Radial, Can - SMD

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UCD0J222MNL1GS information

NICHICON UCD0J222MNL1GS technical specifications, attributes, parameters and parts with similar specifications to NICHICON UCD0J222MNL1GS.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • Radial, Can - SMD
  • Terminal Shape
  • FLAT
  • Dielectric Material
  • ALUMINUM (WET)
  • Weight
  • 1.630013g
  • Surface Mount Land Size
  • 0.406Lx0.406W 10.30mmx10.30mm
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • UCD
  • Published
  • 2009
  • Size / Dimension
  • 0.394Dia 10.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e6
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Number of Terminations
  • 2
  • Termination
  • SMD/SMT
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin/Bismuth (Sn/Bi)
  • Applications
  • Automotive
  • HTS Code
  • 8532.22.00
  • Capacitance
  • 2200?F
  • Voltage - Rated DC
  • 6.3V
  • Size Code
  • 4141
  • Lifetime @ Temp
  • 5000 Hrs @ 105°C
  • Leakage Current
  • 3?A
  • Ripple Current
  • 950mA
  • Polarization
  • Polar
  • Life (Hours)
  • 1000 hours
  • Tan Delta
  • 0.28
  • Ripple Current @ Low Frequency
  • 475mA @ 120Hz
  • Ripple Current @ High Frequency
  • 950mA @ 100kHz
  • Diameter
  • 10mm
  • Height Seated (Max)
  • 0.563 14.30mm
  • Length
  • 10.9mm
  • Width
  • 10.3mm
  • RoHS Status
  • RoHS Compliant
  • Ratings
  • AEC-Q200

Download datasheets and manufacturer documentation for NICHICON UCD0J222MNL1GS.

Datasheets:

UCD0J222MNL1GS Overview


Full charge results in a ripple current of 950mA @ 100kHz.The ripple current at the lowest charge is 475mA @ 120Hz.Keeping the maximum height of the seated person (Max) below 0.563 14.30mm is recommended.Rated DC voltage is 6.3V for this capacitor.High efficiency requires an operating temperature of -55°C~105°C.

UCD0J222MNL1GS Features


the ripple current is 950mA @ 100kHz.
the ripple current is 475mA @ 120Hz.
voltage - Rated DC of 6.3V
an operating temperature of -55°C~105°C


UCD0J222MNL1GS Applications


There are a lot of Nichicon
UCD0J222MNL1GS applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
