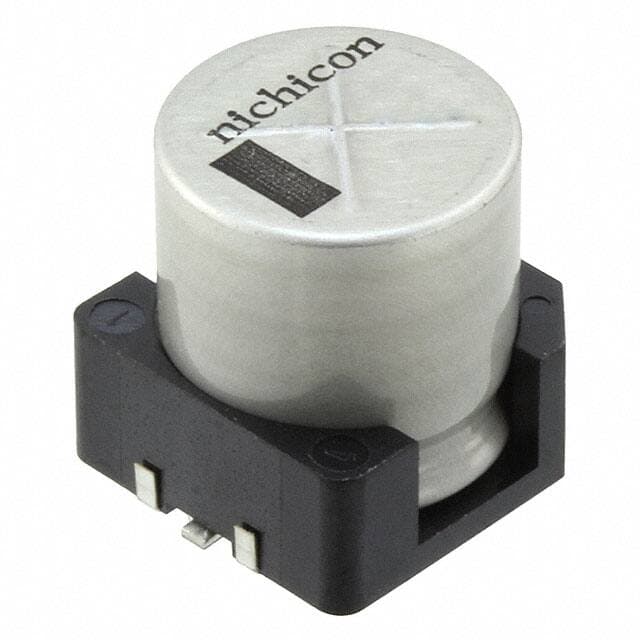

NICHICON UCX1H391MNS1MS
NICHICON UCX1H391MNS1MS

NICHICON UCX1H391MNS1MS

Manufacturer No:

UCX1H391MNS1MS

Manufacturer:

NICHICON

Package:

Radial, Can - SMD

Description:

UCX 390?F Capacitor ±20% Tape & Reel (TR) Surface Mount 750mA 0.492Dia 12.50mm -40°C~135°C Polar Radial, Can - SMD

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UCX1H391MNS1MS information

NICHICON UCX1H391MNS1MS technical specifications, attributes, parameters and parts with similar specifications to NICHICON UCX1H391MNS1MS.

  • Type
  • Parameter
  • Factory Lead Time
  • 24 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • Radial, Can - SMD
  • Surface Mount Land Size
  • 0.535Lx0.535W 13.60mmx13.60mm
  • Operating Temperature
  • -40°C~135°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • UCX
  • Published
  • 2012
  • Size / Dimension
  • 0.492Dia 12.50mm
  • Tolerance
  • ±20%
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • ECCN Code
  • EAR99
  • Applications
  • General Purpose
  • HTS Code
  • 8532.24.0020
  • Capacitance
  • 390?F
  • Voltage - Rated DC
  • 50V
  • ESR (Equivalent Series Resistance)
  • 90mOhm
  • Lifetime @ Temp
  • 2000 Hrs @ 135°C
  • Ripple Current
  • 750mA
  • Polarization
  • Polar
  • Life (Hours)
  • 2000 hours
  • Ripple Current @ High Frequency
  • 750mA @ 100kHz
  • Height Seated (Max)
  • 0.551 14.00mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON UCX1H391MNS1MS.

Datasheets:

UCX1H391MNS1MS Overview


With a full charge, the ripple current is 750mA @ 100kHz.Defining 90mOhm as an ESR (Equivalent Series Resistance) is essential.When the charge is at the lowest, the ripple current is 375mA @ 120Hz.Ensure that the height of the seated person (Max) does not exceed 0.551 14.00mm.Voltage - Rated DC of 50V controls this capacitor.High efficiency requires the operating temperature to be -40°C~135°C.

UCX1H391MNS1MS Features


the ripple current is 750mA @ 100kHz.
the ripple current is 375mA @ 120Hz.
voltage - Rated DC of 50V
an operating temperature of -40°C~135°C


UCX1H391MNS1MS Applications


There are a lot of Nichicon
UCX1H391MNS1MS applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
