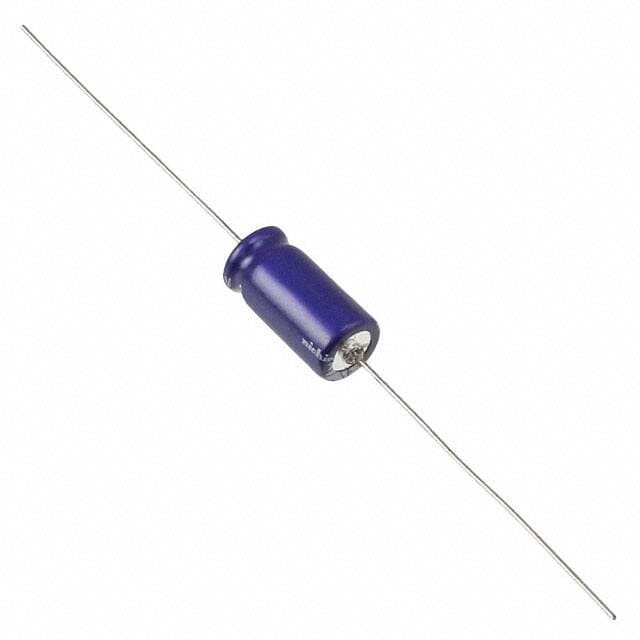

NICHICON TVX1C221MAD

Manufacturer No:

TVX1C221MAD

Manufacturer:

NICHICON

Package:

Axial, Can

Description:

TVX 220?F Capacitor ±20% Bulk Through Hole 260mA 0.315Diax0.669L 8.00mmx17.00mm -40°C~85°C Axial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TVX1C221MAD information

NICHICON TVX1C221MAD technical specifications, attributes, parameters and parts with similar specifications to NICHICON TVX1C221MAD.

Type
Parameter

Factory Lead Time
19 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Axial, Can

Terminal Shape
WIRE

Number of Pins
2

Dielectric Material
Aluminium

Operating Temperature
-40°C~85°C

Packaging
Bulk

Series
TVX

Published
2004

Size / Dimension
0.315Diax0.669L 8.00mmx17.00mm

Tolerance
±20%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Axial

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Applications
General Purpose

Capacitance
220?F

Voltage - Rated DC
16V

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Length
35mm

Polarity
POLARIZED

Lead Diameter
600 ?m

Lifetime @ Temp
2000 Hrs @ 85°C

Leakage Current
4?A

Ripple Current
260mA

Life (Hours)
2000 hours

Ripple Current @ Low Frequency
260mA @ 120Hz

Ripple Current @ High Frequency
390mA @ 10kHz

Dissipation Factor
0.16 %

Ripple Current (AC)
260mA

Diameter
8mm

Height
16mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for NICHICON TVX1C221MAD.

Datasheets:

nichicon-tvx1e220mad1ls-datasheets-9126.pdf

nichicon-tvx1c221mad-datasheets-7589.pdf

nichicon-tvx1c221mad-datasheets-7590.pdf

TVX1C221MAD Overview

As far as the ripple current is concerned, it is 390mA @ 10kHz at full charge.As far as the ripple current is concerned, it is 260mA @ 120Hz at the lowest charge.It operates from a 0.16 % dissipation factor.This capacitor operates from a voltage - Rated DC of 16V.This capacitor operates from a voltage - Rated AC of 16V.The operating temperature should be maintained at -40°C~85°C for high efficiency.

TVX1C221MAD Features

the ripple current is 390mA @ 10kHz.
the ripple current is 260mA @ 120Hz.
a dissipation factor of 0.16 %
voltage - Rated DC of 16V
an operating temperature of -40°C~85°C

TVX1C221MAD Applications

There are a lot of Nichicon
TVX1C221MAD applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
