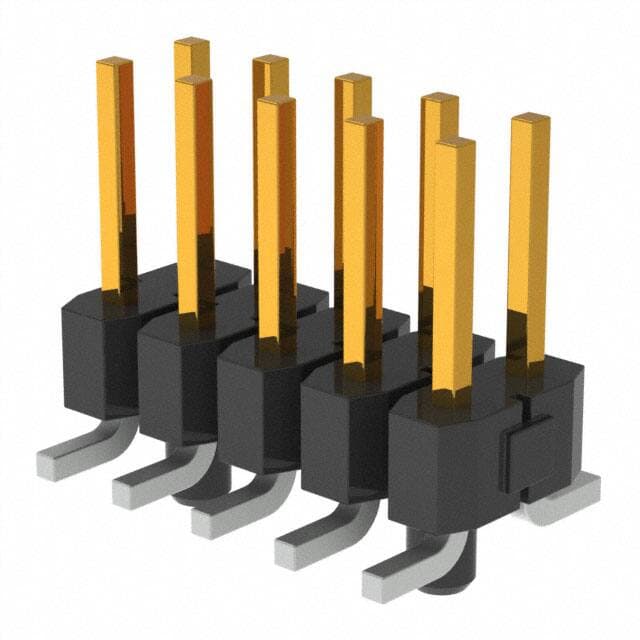

SAMTEC TSM-105-01-L-DV-A-P-TR

Manufacturer No:

TSM-105-01-L-DV-A-P-TR

Manufacturer:

Package:

Description:

TSM Series 2-Row Header Solder Phosphor Bronze Tape & Reel (TR) Surface Mount Gold Liquid Crystal Polymer (LCP) 10-Position Board to Board or Cable 0.100 2.54mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TSM-105-01-L-DV-A-P-TR information

SAMTEC TSM-105-01-L-DV-A-P-TR technical specifications, attributes, parameters and parts with similar specifications to SAMTEC TSM-105-01-L-DV-A-P-TR.

Type
Parameter

Factory Lead Time
3 Weeks

Contact Material
Phosphor Bronze

Mounting Type
Surface Mount

Contact Shape
Square

Insulation Material
Liquid Crystal Polymer (LCP)

Housing Material
Polymer

Mounting Option 1
LOCKING

Operating Temperature
-55°C~125°C

Packaging
Tape & Reel (TR)

Series
TSM

Published
2016

JESD-609 Code
e3

Feature
Board Guide, Pick and Place

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Header

Number of Positions
10

Number of Rows
2

Gender
Male

Additional Feature
POLARIZED

HTS Code
8536.69.40.40

Contact Finish - Mating
Gold

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Total Number of Contacts
10

Orientation
Straight

Depth
5.08mm

Insulation Height
0.100 2.54mm

Style
Board to Board or Cable

Number of Positions Loaded
All

Pitch - Mating
0.100 2.54mm

Insulation Color
Black

Number of Conductors
ONE

Reference Standard
UL

Reliability
COMMERCIAL

Row Spacing - Mating
0.100 (2.54mm)

Shrouding
Unshrouded

Number Of PCB Rows
2

Contact Finish - Post
Tin

Download datasheets and manufacturer documentation for SAMTEC TSM-105-01-L-DV-A-P-TR.

TSM-105-01-L-DV-A-P-TR Overview

Packaging for this item is Header.There is a mounting type of Surface Mount for this device.It is necessary to use a Tape & Reel (TR) case for packaging the product.This product is part of the TSM Series.Moreover, there are a number of other features, including POLARIZED, to name just a few.In many ways, its Board Guide, Pick and Place feature makes it more powerful.In this case, the device operates at -55°C~125°C Operating Temperature.
