SAMTEC QTH-090-01-F-D-A-K-TR
SAMTEC QTH-090-01-F-D-A-K-TR

SAMTEC QTH-090-01-F-D-A-K-TR

Manufacturer No:

QTH-090-01-F-D-A-K-TR

Manufacturer:

SAMTEC

Package:

Description:

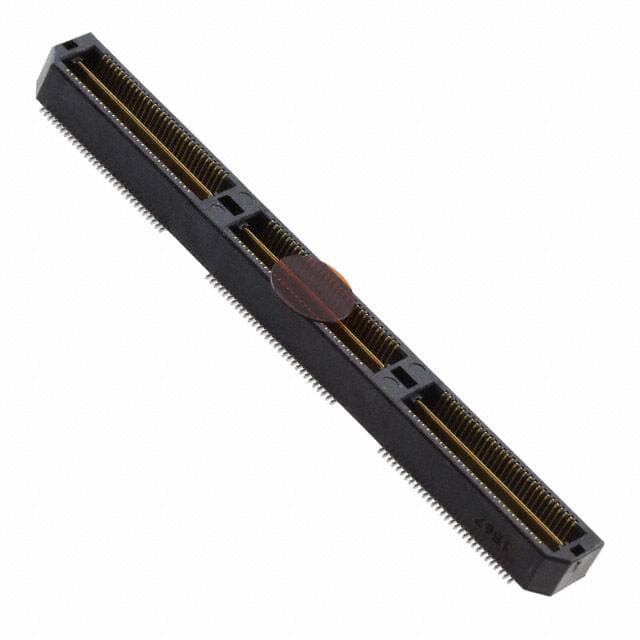

Header, Outer Shroud Contacts Tape & Reel (TR) 2 Rows 0.020 0.50mm Surface Mount 180 Positions Q Strip® QTH Gold Solder Bronze

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

QTH-090-01-F-D-A-K-TR information

SAMTEC QTH-090-01-F-D-A-K-TR technical specifications, attributes, parameters and parts with similar specifications to SAMTEC QTH-090-01-F-D-A-K-TR.

  • Type
  • Parameter
  • Factory Lead Time
  • 4 Weeks
  • Contact Material
  • Bronze
  • Mounting Type
  • Surface Mount
  • Housing Material
  • Polymer
  • Board Mounting Option
  • PEG
  • Packaging
  • Tape & Reel (TR)
  • Series
  • Q Strip® QTH
  • Published
  • 2012
  • Feature
  • Board Guide, Ground Bus (Plane), Pick and Place
  • Part Status
  • Active
  • Termination
  • Solder
  • Connector Type
  • Header, Outer Shroud Contacts
  • Number of Positions
  • 180
  • Max Operating Temperature
  • 125°C
  • Min Operating Temperature
  • -55°C
  • Number of Rows
  • 2
  • Gender
  • Male
  • Additional Feature
  • E.L.P.
  • Subcategory
  • Headers and Edge Type Connectors
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Mixed Contacts
  • NO
  • Pitch
  • 0.020 0.50mm
  • Total Number of Contacts
  • 180
  • Orientation
  • Straight
  • Depth
  • 5.97mm
  • Number of Conductors
  • ONE
  • Contact Finish
  • Gold
  • Reliability
  • COMMERCIAL
  • Number Of PCB Rows
  • 2
  • PCB Contact Pattern
  • RECTANGULAR
  • Mating Information
  • MULTIPLE MATING PARTS AVAILABLE
  • Rated Current (Signal)
  • 2A
  • Contact Style
  • CENTRONIC
  • Max Voltage Rating (AC)
  • 125V
  • Contact Pattern
  • RECTANGULAR
  • Insulator Color
  • BLACK
  • Length
  • 60mm
  • Contact Finish Thickness
  • 3.00μin 0.076μm
  • Height Above Board
  • 0.160 4.06mm
  • Stack Height (Mating)
  • 5mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for SAMTEC QTH-090-01-F-D-A-K-TR.

QTH-090-01-F-D-A-K-TR Overview


This product is packaged in a Header, Outer Shroud Contacts box.An Tape & Reel (TR) case is utilized for packaging the product.Surface Mount indicates that the device is mounted.The product is a part of the Q Strip® QTH Series.It is possible to ensure that Board Guide, Ground Bus (Plane), Pick and Place remains constant during operation.Use it below 125°C.A minimum temperature of -55°C must be maintained for the operation of this device.Furthermore, there are other features such as E.L.P., to name a few.

QTH-090-01-F-D-A-K-TR Features


Q Strip® QTH series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Max Operating temperature at -55°C
Additional Feature: E.L.P.


QTH-090-01-F-D-A-K-TR Applications


There are a lot of Samtec Inc.
QTH-090-01-F-D-A-K-TR Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
