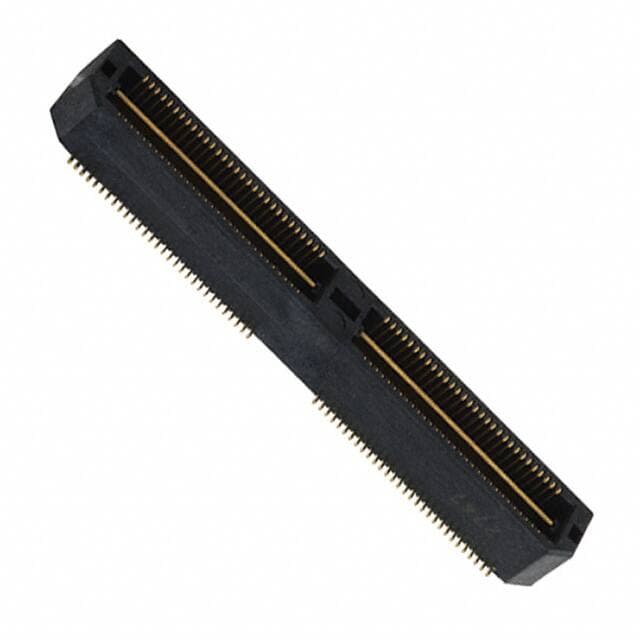

SAMTEC QTH-060-01-L-D-A-K-TR

Manufacturer No:

QTH-060-01-L-D-A-K-TR

Manufacturer:

Package:

Description:

Header, Outer Shroud Contacts Tape & Reel (TR) 2 Rows 0.020 0.50mm Surface Mount 120 Positions Q Strip® QTH Gold Solder Bronze

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

QTH-060-01-L-D-A-K-TR information

SAMTEC QTH-060-01-L-D-A-K-TR technical specifications, attributes, parameters and parts with similar specifications to SAMTEC QTH-060-01-L-D-A-K-TR.

Type
Parameter

Factory Lead Time
3 Weeks

Contact Material
Bronze

Mounting Type
Surface Mount

Housing Material
Polymer

Mounting Option 1
LOCKING

Board Mounting Option
POSITIONING PIN

Packaging
Tape & Reel (TR)

Series
Q Strip® QTH

Published
2008

JESD-609 Code
e3

Feature
Board Guide, Ground Bus (Plane), Pick and Place

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Header, Outer Shroud Contacts

Number of Positions
120

Max Operating Temperature
125°C

Min Operating Temperature
-55°C

Number of Rows
2

Gender
Male

Additional Feature
E.L.P.

HTS Code
8536.69.40.40

Subcategory
Headers and Edge Type Connectors

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Mixed Contacts
NO

Option
GENERAL PURPOSE

Pitch
0.020 0.50mm

Total Number of Contacts
120

Orientation
Straight

Depth
7.11mm

Current Rating
1A

Number of Conductors
ONE

Reference Standard
UL, CSA

Contact Finish
Gold

Voltage - Rated AC
125V

Reliability
COMMERCIAL

Number Of PCB Rows
2

PCB Contact Pattern
RECTANGULAR

Mating Information
MULTIPLE MATING PARTS AVAILABLE

Rated Current (Signal)
1A

Contact Style
CENTRONIC

Insulation Resistance
5000000000Ohm

Row Spacing
3.9 mm

Body/Shell Style
RECEPTACLE

Download datasheets and manufacturer documentation for SAMTEC QTH-060-01-L-D-A-K-TR.

QTH-060-01-L-D-A-K-TR Overview

Currently, it is packaged in Header, Outer Shroud Contacts.Packaging the product involves using a Tape & Reel (TR) case.Mounting type Surface Mount is assigned to the device.Among the products in the Q Strip® QTH Series, it is one of the most popular.Maintaining Board Guide, Ground Bus (Plane), Pick and Place is possible when operating.It works best at below 125°C.The device must be operated at a temperature of -55°C.There are also other features, like E.L.P., to name a few.

QTH-060-01-L-D-A-K-TR Features

Q Strip® QTH series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Max Operating temperature at -55°C
Additional Feature: E.L.P.

QTH-060-01-L-D-A-K-TR Applications

There are a lot of Samtec Inc.
QTH-060-01-L-D-A-K-TR Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
