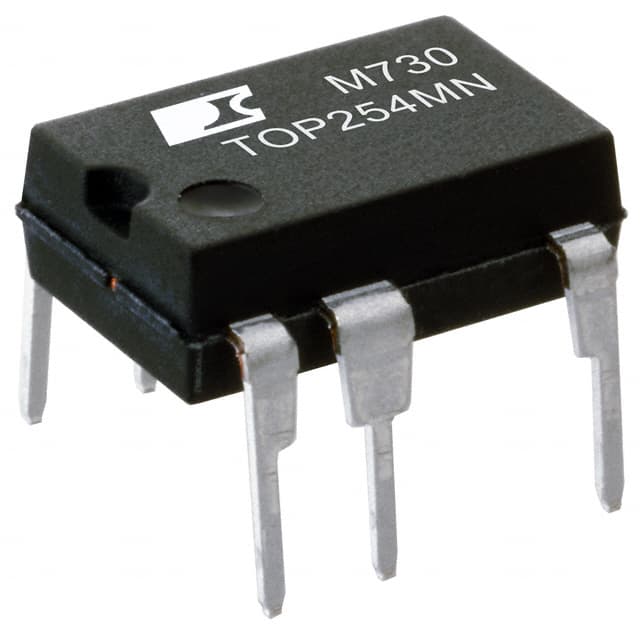

Power Integrations TOP254MN

Manufacturer No:

TOP254MN

Manufacturer:

Power Integrations

Package:

10-SDIP (0.300, 7.62mm), 9 Leads

Description:

9 Terminations 9 Pin AC to DC power converter TOPSwitch®-HX Series 66kHz

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TOP254MN information

Power Integrations TOP254MN technical specifications, attributes, parameters and parts with similar specifications to Power Integrations TOP254MN.

Type
Parameter

Factory Lead Time
4 Weeks

Mounting Type
Through Hole

Package / Case
10-SDIP (0.300, 7.62mm), 9 Leads

Surface Mount
NO

Number of Pins
9

Operating Temperature
-40°C~150°C TJ

Packaging
Tube

Series
TOPSwitch®-HX

Published
2009

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
9

Terminal Finish
Pure Matte Tin (Sn)

Subcategory
Switching Regulator or Controllers

Max Power Dissipation
62W

Technology
CMOS

Terminal Position
DUAL

Number of Functions
1

Terminal Pitch
1.78mm

Output Voltage
700V

Max Supply Voltage
9V

Min Supply Voltage
-300mV

Analog IC - Other Type
ANALOG CIRCUIT

Output Current
2.08A

Topology
Flyback

Control Mode
VOLTAGE-MODE

Frequency - Switching
66kHz

Internal Switch(s)
Yes

Fault Protection
Current Limiting, Over Temperature, Over Voltage

Max Duty Cycle
78 %

Output Isolation
Isolated

Voltage - Breakdown
700V

Height Seated (Max)
5.08mm

Width
7.62mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Power Integrations TOP254MN.

TOP254MN Overview

The ac to dc converter is embedded in 10-SDIP (0.300, 7.62mm), 9 Leads package.It is available in Tube AC/DC power converter.This AC/DC converter is mounted in the way of Through Hole .To deliver its performance, the ac dc converter should be operated at a temperature of -40°C~150°C TJ .This AC DC converter employs ANALOG CIRCUIT analog IC type.The switching frequency reaches 66kHz .It has a total of 9 terminations.There are 9 pins on the ac/dc converter.It is a member of TOPSwitch®-HX manufacturer family.The ac to dc conversions are included in Switching Regulator or Controllers .The output current is set to 2.08A .Its output voltage amounts to 700V .The output power of a coverter generates 28W .AC to DC converter can work with the minimum supply voltage of -300mV .

TOP254MN Features

Packaged with 10-SDIP (0.300, 7.62mm), 9 Leads
Switching Frequency at 66kHz
With 9 pins
Output Current at 2.08A

TOP254MN Applications

There are a lot of Power Integrations
TOP254MN AC DC Converters applications.

AC/DC Adaptors/Chargers for Cell Phones
AC/DC Adaptors/Chargers for Cordless Phone
AC/DC Adaptors/Chargers for PDAs
AC/DC Adaptors/Chargers for E-books
Adaptors for Portable Media Player
Adaptors for DSCs
Set-top boxes
DVD players
Records
Linear Adapter Replacements
