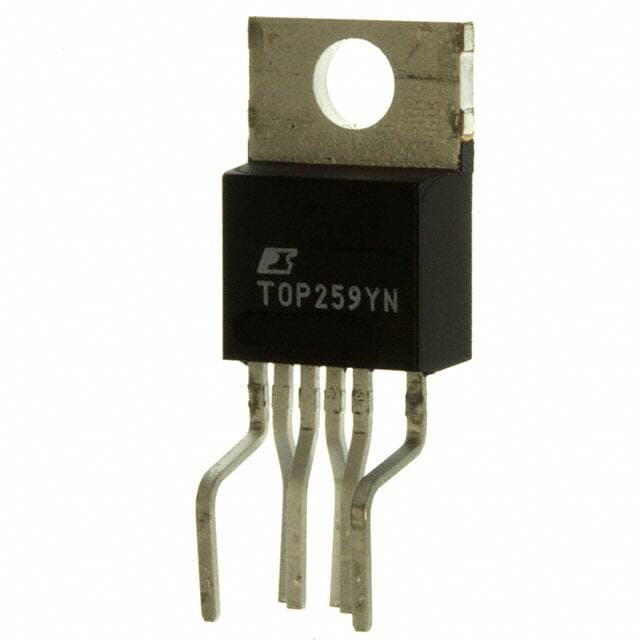

Power Integrations TOP259YN

Manufacturer No:

TOP259YN

Manufacturer:

Power Integrations

Package:

TO-220-7 (Formed Leads), 6 Leads

Description:

6 Terminations 7 Pin AC to DC power converter TOPSwitch®-HX Series 1 Outputs 66kHz

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TOP259YN information

Power Integrations TOP259YN technical specifications, attributes, parameters and parts with similar specifications to Power Integrations TOP259YN.

Type
Parameter

Factory Lead Time
8 Weeks

Mounting Type
Through Hole

Package / Case
TO-220-7 (Formed Leads), 6 Leads

Surface Mount
NO

Number of Pins
7

Operating Temperature
-40°C~150°C TJ

Packaging
Tube

Series
TOPSwitch®-HX

Published
2009

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
6

Terminal Finish
PURE MATTE TIN

Subcategory
Switching Regulator or Controllers

Max Power Dissipation
238W

Technology
CMOS

Terminal Position
SINGLE

Number of Functions
1

Frequency
132kHz

JESD-30 Code
R-XSFM-T6

Number of Outputs
1

Analog IC - Other Type
ANALOG CIRCUIT

Topology
Flyback

Frequency - Switching
66kHz

Internal Switch(s)
Yes

Fault Protection
Current Limiting, Over Temperature, Over Voltage

Duty Cycle
78%

Output Isolation
Isolated

Voltage - Breakdown
700V

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Power Integrations TOP259YN.

TOP259YN Overview

It is embedded in package TO-220-7 (Formed Leads), 6 Leads .You can get it in AC/DC power converter Tube .As you can see, this AC/DC converter is mounted in the way of Through Hole .It is recommended that the ac dc converter be operated at a temperature of -40°C~150°C TJ °C in order to achieve its full performance.Analog IC type ANALOG CIRCUIT is utilized in this AC DC converter.As a result, the switching frequency reaches 66kHz .There have been 6 terminations of this program.Approximately 7 pins are present on the ac/dc converter.The AC to DC converter belongs to the manufacturer family of TOPSwitch®-HX .In this AC to DC transformer, there are 1 outputs to run.There are a ac to dc conversions included in Switching Regulator or Controllers .As long as AC to DC converter is operated at frequency 132kHz ,it is capable of attaining high efficiency.

TOP259YN Features

Packaged with TO-220-7 (Formed Leads), 6 Leads
Switching Frequency at 66kHz
With 7 pins

TOP259YN Applications

There are a lot of Power Integrations
TOP259YN AC DC Converters applications.

Adaptors for DSCs
Set-top boxes
DVD players
Records
Linear Adapter Replacements
Chargers for cell/cordless phones
PDAs
MP3
Portable audio
Adapters
