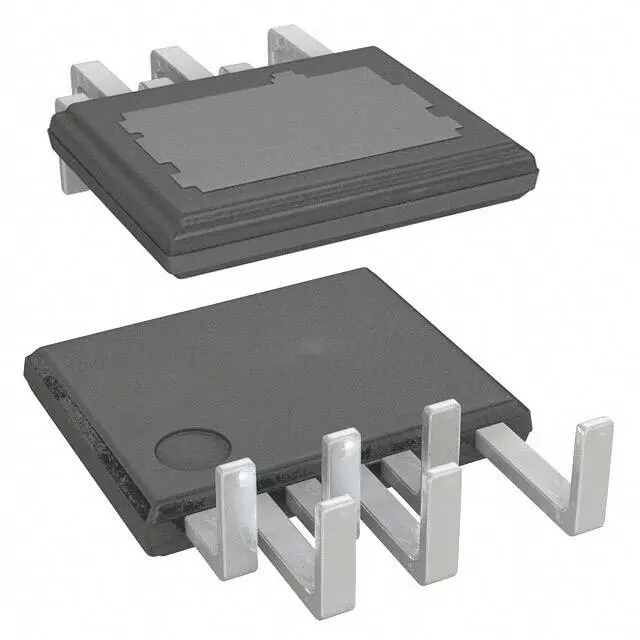

Power Integrations LYT4316L

Manufacturer No:

LYT4316L

Manufacturer:

Power Integrations

Package:

7-SSIP, 6 Leads, Exposed Pad, Formed Leads

Description:

AC to DC power converter LYTSwitch?-4 Series 1 Outputs

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LYT4316L information

Power Integrations LYT4316L technical specifications, attributes, parameters and parts with similar specifications to Power Integrations LYT4316L.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
7-SSIP, 6 Leads, Exposed Pad, Formed Leads

Operating Temperature
-40°C~150°C TJ

Packaging
Tube

Series
LYTSwitch?-4

Published
2013

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Power (Watts)
35W

Max Power Dissipation
35W

Frequency
140kHz

Number of Outputs
1

Operating Supply Voltage
132V

Topology
Flyback, Step-Down (Buck), Step-Up (Boost)

Interface IC Type
LED DISPLAY DRIVER

Internal Switch(s)
Yes

Duty Cycle
99.9%

Output Isolation
Isolated

Voltage - Breakdown
725V

Height
2.06mm

Length
10.24mm

Width
8.25mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Power Integrations LYT4316L.

LYT4316L Overview

It is embedded in package 7-SSIP, 6 Leads, Exposed Pad, Formed Leads .You can get it in AC/DC power converter Tube .As you can see, this AC/DC converter is mounted in the way of Through Hole .It is recommended that the ac dc converter be operated at a temperature of -40°C~150°C TJ °C in order to achieve its full performance.The ac dc converters is suitable for mounting by Through Hole .The AC to DC converter belongs to the manufacturer family of LYTSwitch?-4 .In this AC to DC transformer, there are 1 outputs to run.As long as AC to DC converter is operated at frequency 140kHz ,it is capable of attaining high efficiency.It is possible for the interface IC to conduct when the supply voltage is 132V .There is a LED DISPLAY DRIVER interface IC type for this AC to DC power supply.
