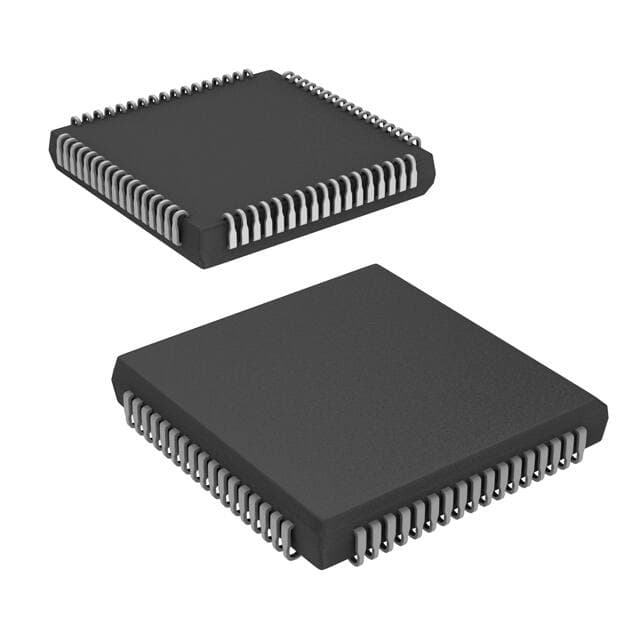

TI TL16C554AIFN

Manufacturer No:

TL16C554AIFN

Manufacturer:

Package:

68-LCC (J-Lead)

Description:

3.3V V 24.23mm mm Interface - UARTs (Universal Asynchronous Receiver Transmitter) 24.23mm mm CMOS 68 260 68

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TL16C554AIFN information

TI TL16C554AIFN technical specifications, attributes, parameters and parts with similar specifications to TI TL16C554AIFN.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 2 days ago)

Factory Lead Time
6 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
68-LCC (J-Lead)

Number of Pins
68

Packaging
Tube

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
68

ECCN Code
EAR99

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

HTS Code
8542.39.00.01

Subcategory
Serial IO/Communication Controllers

Technology
CMOS

Voltage - Supply
3V~5.25V

Terminal Position
QUAD

Terminal Form
J BEND

Peak Reflow Temperature (Cel)
260

Supply Voltage
3.3V

Base Part Number
TL16C554

Pin Count
68

Operating Supply Voltage
5V

Temperature Grade
INDUSTRIAL

Number of Channels
4, QUART

Nominal Supply Current
50mA

Max Supply Current
50mA

uPs/uCs/Peripheral ICs Type
SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

Clock Frequency
16MHz

Propagation Delay
35 ns

Boundary Scan
NO

Low Power Mode
NO

Data Rate (Max)
1Mbps

Number of Serial I/Os
4

Data Transfer Rate-Max
0.125 MBps

Communication Protocol
ASYNC, BIT

Data Encoding/Decoding Method
NRZ

FIFO's
16 Byte

With Modem Control
Yes

Height
4.57mm

Length
24.23mm

Width
24.23mm

Thickness
4.06mm

Download datasheets and manufacturer documentation for TI TL16C554AIFN.

TL16C554AIFN Overview

The 68-LCC (J-Lead) package is the most cost-effective.Transmission uses 4, QUART channels.As far as packaging is concerned, Tube is used.Its uPs/uCs/Peripheral ICs type is SERIAL IO/COMMUNICATION CONTROLLER, SERIAL.As part of its configuration, it uses 68 terminations.UART operates on 3.3V supply voltage.Currently, this electronic part is Active.As a way to communicate data, the board has 4 serial I/Os.Mounting is possible through Surface Mount.This device operates at 3V~5.25V.There are 68 pins on this electronic device.16MHz is the clock frequency of this integrated circuit.UART falls under the subcategory of Serial IO/Communication Controllers because of a series of similarUARTies.UART is important that the operating temperature does not exceed -40°C in order for the machine to perform normally for a long time.It is important to keep the operating temperature below 85°C to ensure a long working period.A device's configuration is based on its 68 pins.The way of mounting it is Surface Mount.5V is the supply voltage provided for high-efficiency operation.Its base part number is TL16C554.50mA is the maximum allowable supply current.

TL16C554AIFN Features

4 serial I/Os
Clock frequency of 16MHz
Operating supply voltage of 5V

TL16C554AIFN Applications

There are a lot of Texas Instruments
TL16C554AIFN UARTs applications.

Portable and battery operated devices
Cellular data devices
Industrial computing
Communications equipment
White goods
Battery Operated Electronics
Handheld Terminal
Personal Digital Assistants
Cellular Phones DataPort
Wireless Infrared Data Communications Systems
