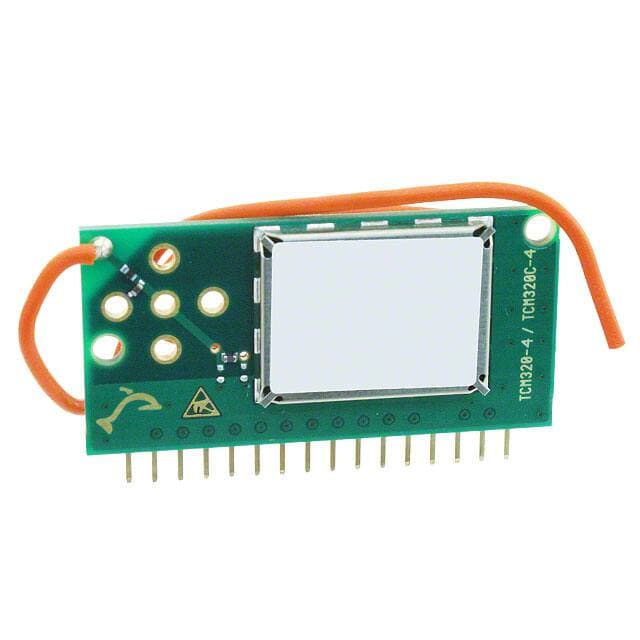

EnOcean TCM320C

Manufacturer No:

TCM320C

Manufacturer:

EnOcean

Package:

Module

Description:

315MHz General ISM < 1GHz -25°C~85°C 2.6V~3.3V Tray Integrated, Whip 125kbps 7.5dBm -98dBm Module

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TCM320C information

EnOcean TCM320C technical specifications, attributes, parameters and parts with similar specifications to EnOcean TCM320C.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Module

Operating Temperature
-25°C~85°C

Packaging
Tray

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
85°C

Min Operating Temperature
-25°C

Voltage - Supply
2.6V~3.3V

Frequency
315MHz

Max Supply Voltage
3.3V

Min Supply Voltage
2.6V

Memory Size
32kB Flash 2kB SRAM

Nominal Supply Current
24mA

Data Rate
125kbps

Max Frequency
315MHz

Power - Output
7.5dBm

RF Family/Standard
General ISM < 1GHz

Antenna Type
Integrated, Whip

Sensitivity
-98dBm

Current - Receiving
33mA

Current - Transmitting
24mA

Sensitivity (dBm)
-98 dBm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for EnOcean TCM320C.

TCM320C Overview

As far as RF Transceiver' mounting is concerned, Through Hole is adopted.Ideally, Transceiver RF's supply voltage should be 3.3V.optimized performance is achieved by utilizing the Tray package in this RF Transceiver module.During Transceiver operation, the operating temperature should remain at -25°C~85°C.It is possible to supply 2.6V~3.3V volts to the RF Transceiver.RF Transceiver Modules operate with a frequency of 315MHz Hz.This Transceiver is widely used in many applications because of its Through Hole mount.

TCM320C Features

Through Hole
3.3V volts
Tray package
2.6V~3.3V volts

TCM320C Applications

There are a lot of Enocean
TCM320C RF Transceiver Modules applications.

Internet of Things (IoT)
Secure Payment
Home and Security
Health and Fitness
Industrial and Data Logger
LED Lighting
Utility and Smart Energy
Thermostats
Smart Meters
HVAC
