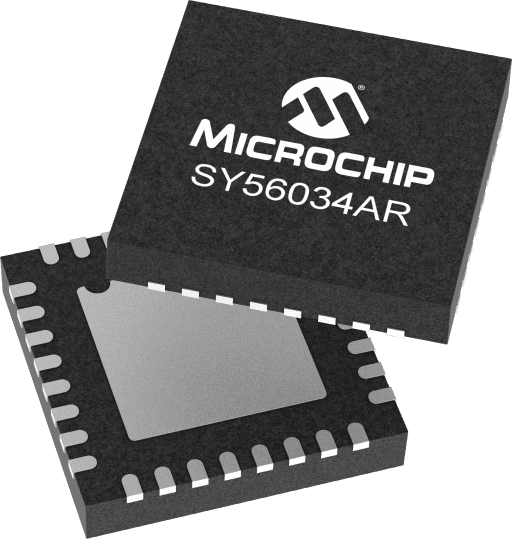

Microchip SY56034ARMG

Manufacturer No:

SY56034ARMG

Manufacturer:

Microchip

Package:

32-VFQFN Exposed Pad, 32-MLF®

Description:

LV CML 2x2 Crosspoint w/ 6 outputs \u0026 w/o EQ

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY56034ARMG information

Microchip SY56034ARMG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY56034ARMG.

Type
Parameter

Description
2:06

Input
ANY

Output
CML

Supply Voltage
2.5V

Max Freq (GHz)
5

Icc (mA)
100

Max Within Device Skew (ps)
25

OE
False

Input Mux
True

Number Of Outputs
0

Max Prop Delay (ps)
300

Download datasheets and manufacturer documentation for Microchip SY56034ARMG.

Data Sheets:

4a8a3f4ef788ec3f4f592ea07a2a9018.pdf

User Guide:

880022b7fa3ea61620e9c97127b502d7.pdf

The SY56034AR is a fully differential, low voltage 1.2V/1.8V/2.5V CML 2:6 (2+4) MUX with crosspoint capability. The SY56034AR can process clock signals as fast as 5GHz or data patterns up to 6.4Gbps.The differential input includes Micrel’s unique, 3-pin input termination architecture that interfaces to LVPECL, LVDS or CML differential signals as small as 100mV (200mVpp) without any level-shifting or termination resistor networks in the signal path. For AC-coupled input interface applications, an internal voltage reference is provided to bias the VT pin. The outputs are 400mV CML, with extremely fast rise/fall times guaranteed to be less than 80ps.The SY56034AR operates from a 2.5V ±5% core supply and a 1.2V/1.8V/2.5V ±5% output supply and is guaranteed over the full industrial temperature range (–40°C to +85°C). The SY56034AR is part of Micrel’s high-speed, Precision Edge® product line.

1.2V/1.8V/2.5V CML 2:6 (2+4) MUX with Crosspoint Capability
High-speed CML outputs
DC-to- >6.4Gbps throughput
<300ps propagation delay (IN-to-Q)
<25ps Output skew
<80ps rise/fall times
1psRMS cycle-to-cycle jitter
<10psPP total jitter
<1psRMS random jitter
<10psPP deterministic jitter
2.5V ±5% , 1.2V/1.8V/2.5V ±5% power supply operation
-40°C to +85°C temperature range
Available in 32-pin QFN package
