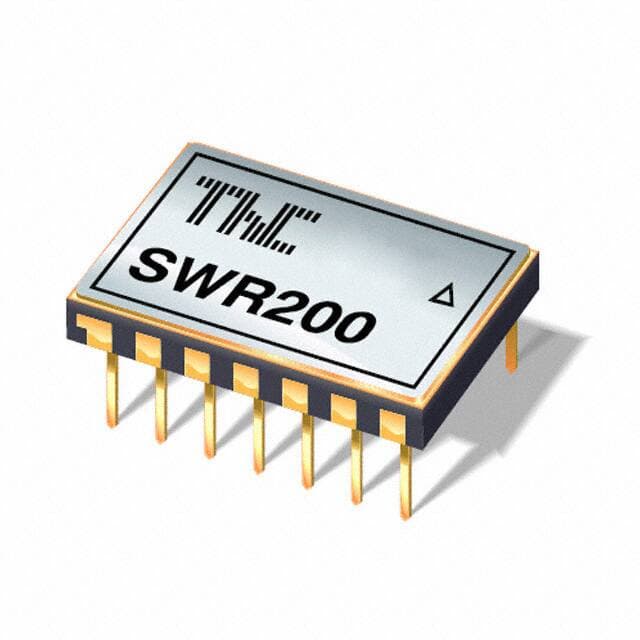

APEX SWR200C

Manufacturer No:

SWR200C

Manufacturer:

APEX

Package:

14-DIP

Description:

15V Sine Wave Reference Programmable Timers SWR200 14 Pins 400Hz~10kHz 15V 14-DIP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SWR200C information

APEX SWR200C technical specifications, attributes, parameters and parts with similar specifications to APEX SWR200C.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
14-DIP

Operating Temperature
-25°C~85°C

Packaging
Tube

Published
2015

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
14

ECCN Code
EAR99

Type
Sine Wave Reference

Terminal Finish
Matte Tin (Sn)

HTS Code
8542.39.00.01

Voltage - Supply
±15V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
15V

Frequency
400Hz~10kHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
SWR200

JESD-30 Code
R-CDIP-T14

Qualification Status
Not Qualified

Supply Voltage-Max (Vsup)
22V

Supply Voltage-Min (Vsup)
13.5V

Operating Supply Current
10.5mA

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for APEX SWR200C.

Datasheets:

apexmicrotechnology-swr200m-datasheets-2981.pdf

SWR200C Overview

It is enclosed in the 14-DIP packaging along with the digital timer. In this case, the frequency of the programmable timer is set to 400Hz~10kHz.It is used to pack in Tube case. The recommended mounting type is Through Hole.±15V can be supplied as a voltage by the programmable timer.The type of chips can be divided into Sine Wave Reference. The operating temperature of this timer clock is -25°C~85°C. To mount this digital timer with Through Hole. The operating supply voltage is rated at 10.5mA voltage. It is based on SWR200. The supply voltage of the programmable timer can rate 15V. The sum of the IC chip pins is 14 . The number of the chip's terminations sums up to 14.
