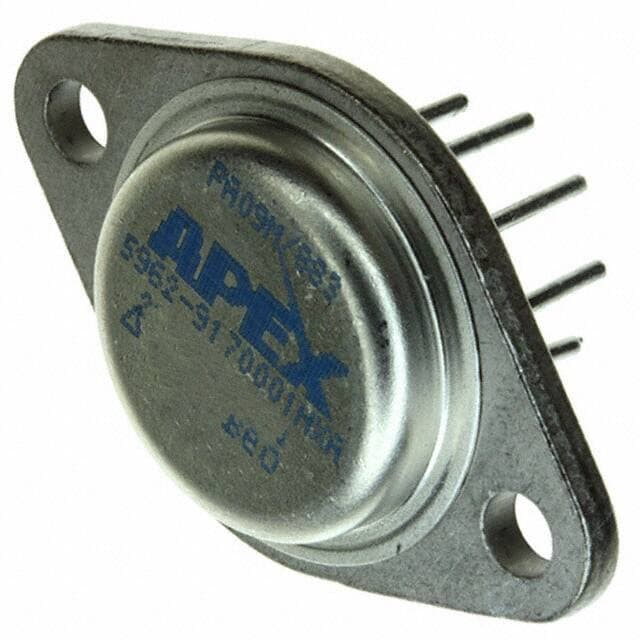

APEX PA09M/883

Manufacturer No:

PA09M/883

Manufacturer:

APEX

Package:

TO-3-8

Description:

8 Terminations 24V~80V ±12V~40V PA09 Video Amps Modules Apex Precision Power® Series 1 Functions 220V/?s

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PA09M/883 information

APEX PA09M/883 technical specifications, attributes, parameters and parts with similar specifications to APEX PA09M/883.

Type
Parameter

Factory Lead Time
10 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-3-8

Packaging
Tube

Series
Apex Precision Power®

Published
2013

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Applications
General Purpose

Subcategory
Operational Amplifier

Technology
BIPOLAR

Terminal Position
BOTTOM

Terminal Form
PIN/PEG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
35V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
PA09

JESD-30 Code
O-MBFM-P8

Qualification Status
Not Qualified

Operating Temperature (Min)
-55°C

Power Supplies
+-35V

Temperature Grade
MILITARY

Number of Circuits
1

Operating Supply Current
70mA

Slew Rate
220V/?s

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio
64 dB

Voltage - Supply, Single/Dual (±)
24V~80V ±12V~40V

Output Current per Channel
4.5A

Neg Supply Voltage-Nom (Vsup)
-35V

Unity Gain BW-Nom
150000 kHz

Low-Offset
NO

Frequency Compensation
NO

Supply Voltage Limit-Max
40V

Low-Bias
YES

Screening Level
38535Q/M;38534H;883B

Neg Supply Voltage-Max (Vsup)
-40V

Input Offset Voltage-Max
5300?V

Power
YES

Download datasheets and manufacturer documentation for APEX PA09M/883.

Datasheets:

apexmicrotechnology-pa09m883-datasheets-1437.pdf

apexmicrotechnology-sa50ce-datasheets-3313.pdf

PA09M/883 Overview

A Tube is used to package class d amplifier.Consequently, class d amp is available in package TO-3-8.This amplifier lends itself well to General Purpose because of its high performance.A Through Hole mounting method is used to connect audio power amplifier to the PCB.The 1 circuits provide audio ic's enhanced flexibility.In order to find audio amp, use its base part number PA09.A pin count of 8 can be found on audio digital amplifier.8 terminations are present in digital amplifier.It is audio power amplifier of Operational Amplifier.Audio amplifier runs on 70mA supply current.Using 35V supply voltage results in high efficiency.Mounting is done with Through Hole.Work should be done at a temperature of at least -55°C.There is a type of amplifier OPERATIONAL AMPLIFIER on the audio amplifier.It belongs to the Apex Precision Power® series of FPGAs.
