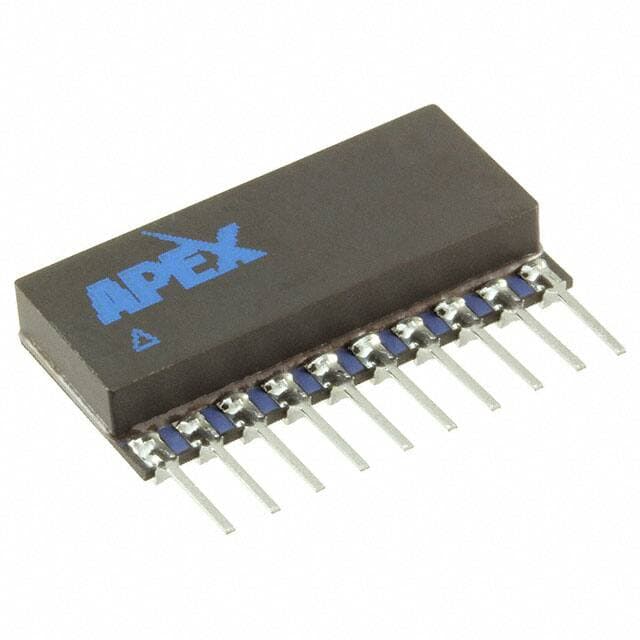

APEX PA441DW
Manufacturer No:
PA441DW
Manufacturer:
Package:
10-SIP
Description:
120mA per Channel 2pA 115 dB Instrumentational OP Amps 0.0002μA ±10V~175V 10-SIP
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
PA441DW information
APEX PA441DW technical specifications, attributes, parameters and parts with similar specifications to APEX PA441DW.
- Type
- Parameter
- Factory Lead Time
- 7 Weeks
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Package / Case
- 10-SIP
- Operating Temperature
- -25°C~85°C
- Packaging
- Tray
- Published
- 2015
- JESD-609 Code
- e3
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 10
- ECCN Code
- EAR99
- Terminal Finish
- Matte Tin (Sn) - with Nickel (Ni) barrier
- Subcategory
- Operational Amplifier
- Technology
- MOS
- Terminal Position
- SINGLE
- Number of Functions
- 1
- Supply Voltage
- 150V
- Terminal Pitch
- 2.54mm
- Number of Circuits
- 1
- Operating Supply Current
- 2.2mA
- Slew Rate
- 32V/μs
- Amplifier Type
- General Purpose
- Common Mode Rejection Ratio
- 115 dB
- Voltage - Supply, Single/Dual (±)
- ±10V~175V
- Output Current per Channel
- 120mA
- Input Offset Voltage (Vos)
- 5mV
- Gain Bandwidth Product
- 10MHz
- Neg Supply Voltage-Nom (Vsup)
- -150V
- Unity Gain BW-Nom
- 10000 kHz
- Average Bias Current-Max (IIB)
- 0.0002μA
- Length
- 25.4mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for APEX PA441DW.
Datasheets:
PA441DW Overview
The linear amplifier is packaged in a 10-SIP case. This is a General Purpose type op amp. Linear amplifier is delivered in a Tray case. The number of terminations approaches 10. Please take in mind that this instrumentation amplifier should be run at 150V. To be specific, this instrumentation amplifier is a type of Operational Amplifier. Regarding input offset voltage, op amp rates 5mV. Through Hole is the recommended mounting type for this linear amplifier. With regard to operating temperature, this op amp functions well at -25°C~85°C. This op amp can operate from a supply current at 2.2mA. There are 1 circuits on this op amp.
PA441DW Features
supply voltage of 150V
PA441DW Applications
There are a lot of Apex Microtechnology
PA441DW Instrumentational OP Amps applications.
- Inverse/same-phase proportional circuit
- Addition operation circuits
- Subtraction operation circuits
- single/dual op amp sum and difference circuits
- Integrator circuits
- Differentiator circuits
- Logarithmic operation circuits
- Exponential operation circuits
- Multiplication circuits
- Division circuits
