APEX PA12

Manufacturer No:

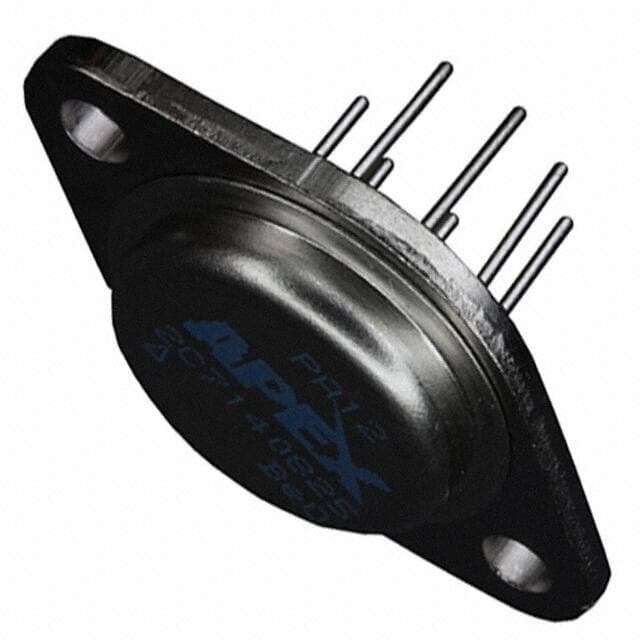

PA12

Manufacturer:

APEX

Package:

TO-3-8

Description:

10A per Channel 12nA Instrumentational OP Amps 20V~90V ±10V~45V PA12 TO-3-8

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PA12 information

APEX PA12 technical specifications, attributes, parameters and parts with similar specifications to APEX PA12.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-3-8

Number of Pins
8

Supplier Device Package
TO-3-8

Operating Temperature
-25°C~85°C

Packaging
Tray

Series
Apex Precision Power®

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
85°C

Min Operating Temperature
-25°C

Base Part Number
PA12

Number of Circuits
1

Operating Supply Current
25mA

Current - Supply
25mA

Slew Rate
2.5V/μs

Amplifier Type
Power

Current - Input Bias
12nA

Voltage - Supply, Single/Dual (±)
20V~90V ±10V~45V

Output Current per Channel
10A

Input Offset Voltage (Vos)
2mV

Gain Bandwidth Product
4MHz

Voltage Gain
110dB

Current - Output / Channel
10A

Dual Supply Voltage
40V

Height
6.4mm

Length
38.9mm

Width
25.4mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for APEX PA12.

Datasheets:

apexmicrotechnology-pa12-datasheets-1712.pdf

apexmicrotechnology-pa12-datasheets-1713.pdf

PA12 Overview

Packaged in a TO-3-8 case, the buffer op amp is ready to use. An op amp ic of the Power type. The op amp is delivered to you in a Tray case. A total of 8 pins are present on the instrumentation amplifier. There is an input offset voltage of 2mV for this buffer op amp. The mounting type that is recommended for this electrical part is Through Hole. In relation to the operating temperature of this buffer op amp, it works well at an average of -25°C~85°C . As long as the supply current of the chip does not exceed 25mA, this op amp ic can operate. 110dB should remain the voltage gain. During the manufacturing process, this buffer amplifier is divided into 1 circuits. For the buffer op amp to operate properly, it must be above the temperature of -25°C degrees Celsius. No temperature greater than 85°C should be used. As a result, it is recommended that a power supply of 25mA be used with this electronic part. As the name implies, Apex Precision Power® refers to the series of the buffer op amp.

PA12 Features

110dB voltage gain

PA12 Applications

There are a lot of Apex Microtechnology
PA12 Instrumentational OP Amps applications.

Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
