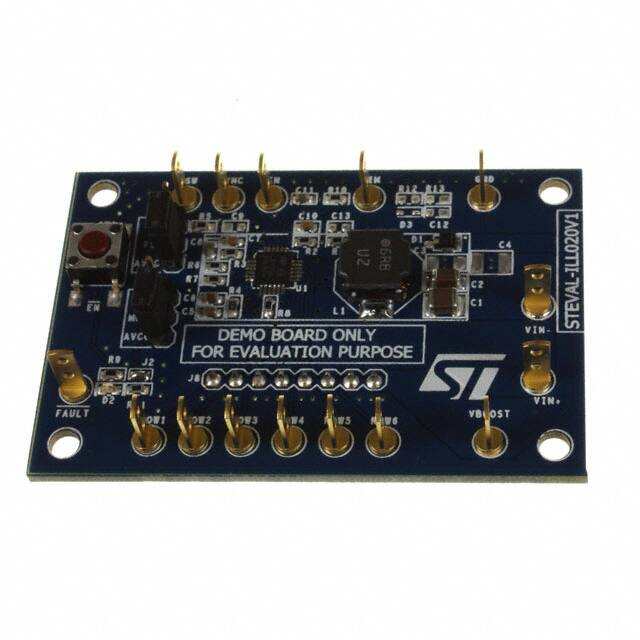

STEVAL-ILL020V1 Information
ST STEVAL-ILL020V1 technical specifications, attributes, parameters and parts with similar specifications to ST STEVAL-ILL020V1.
- Type
- Parameter
- Mount
- Panel
- Packaging
- Box
- Feature
- Dimmable, Extra 5V Output
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Outputs
- 1
- Operating Supply Voltage
- 36V
- Voltage - Input
- 4.5V~36V
- Output Current
- 30mA
- Min Input Voltage
- 4.5V
- Type
- Parameter
- Max Input Voltage
- 36V
- Output Current per Channel
- 30mA
- Utilized IC / Part
- LED7706
- Supplied Contents
- Board(s)
- Evaluation Kit
- Yes
- Outputs and Type
- 6, Non-Isolated
- REACH SVHC
- No SVHC
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Contains Lead
Download datasheets and manufacturer documentation for ST STEVAL-ILL020V1.
No product details available
STEVAL-ILL020V1 FAQ
Can I request a quote for STEVAL-ILL020V1?
STEVAL-ILL020V1 from ST is ready for RFQ submission. Send your target quantity and requirements, and AIChipLink will check current availability, lead time, and quantity-based pricing.
Why is pricing not shown as a fixed value for STEVAL-ILL020V1?
The final price for STEVAL-ILL020V1 depends on requested quantity, supply conditions, date code, package option, and destination. An RFQ lets us return the current market quote for your order.
Which specifications should I review for STEVAL-ILL020V1?
STEVAL-ILL020V1 is a ST electronic component part. Key details include Packaging: Box and Moisture Sensitivity Level (MSL): 1 (Unlimited) and Output Current per Channel: 30mA; contact us if you need the specifications verified before sourcing.
When will I receive a quotation for STEVAL-ILL020V1?
After you submit the RFQ for STEVAL-ILL020V1, our sales team typically replies within 24 hours with availability, unit pricing, lead time, shipping choices, and possible substitutes.
What is the expected shipping time for STEVAL-ILL020V1?
Once stock for STEVAL-ILL020V1 is confirmed, available inventory can generally ship within 1–2 business days. The final schedule depends on quantity, warehouse source, and delivery address.
Can AIChipLink help find alternatives to STEVAL-ILL020V1?
Yes. If STEVAL-ILL020V1 is unavailable, end-of-life, or outside your schedule, we can review comparable ST electronic component parts and compatible replacement options.
