Manufacturer No:

STTH60AC06CP

Manufacturer:

ST

Package:

TO-3P-3, SC-65-3

Description:

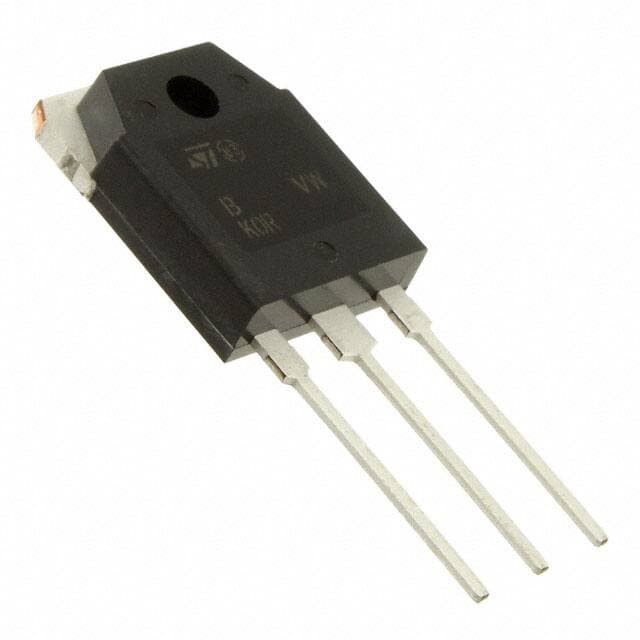

Standard Rectifier Diode 1 Pair Common Cathode Fast Recovery =< 500ns, > 200mA (Io) 175°C Max 30A 600V-DC 2-Element TO-3P-3, SC-65-3 Through Hole

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STTH60AC06CP information

ST STTH60AC06CP technical specifications, attributes, parameters and parts with similar specifications to ST STTH60AC06CP.

  • Type
  • Parameter
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • TO-3P-3, SC-65-3
  • Diode Element Material
  • SILICON
  • Packaging
  • Tube
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Max Operating Temperature
  • 175°C
  • Additional Feature
  • FREE WHEELING DIODE
  • Capacitance
  • 12pF
  • Terminal Position
  • SINGLE
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Base Part Number
  • STTH60
  • JESD-30 Code
  • R-PSFM-T3
  • Number of Elements
  • 2
  • Element Configuration
  • Common Cathode
  • Speed
  • Fast Recovery =< 500ns, > 200mA (Io)
  • Diode Type
  • Standard
  • Current - Reverse Leakage @ Vr
  • 10?A @ 600V
  • Voltage - Forward (Vf) (Max) @ If
  • 1.75V @ 30A
  • Operating Temperature - Junction
  • 175°C Max
  • Application
  • HIGH VOLTAGE ULTRA FAST RECOVERY
  • Max Reverse Voltage (DC)
  • 600V
  • Average Rectified Current
  • 30A
  • Number of Phases
  • 1
  • Reverse Recovery Time
  • 40 ns
  • Peak Reverse Current
  • 40?A
  • Reverse Voltage
  • 600V
  • Diode Configuration
  • 1 Pair Common Cathode
  • Recovery Time
  • 50 ns
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for ST STTH60AC06CP.

Datasheets:

STTH60AC06CP Overview


A surge current should be monitored and should not exceed 280A.Array has a capacArrayance of approximately 12pF farads.There is a reverse voltage peak of 40?A on devices like this one.

STTH60AC06CP Features


12pF farads
a peak voltage of 40?A
a reverse voltage peak of 40?A


STTH60AC06CP Applications


There are a lot of STMicroelectronics
STTH60AC06CP applications of rectifier diode array.


  • Rectifier for drives applications
  • Crowbar applications
  • Rectifiers for UBS
  • Battery chargers
  • Rectifiers in switch mode power supplies (SMPS)
  • Free wheeling diode in low voltage converters
  • General Rectification
