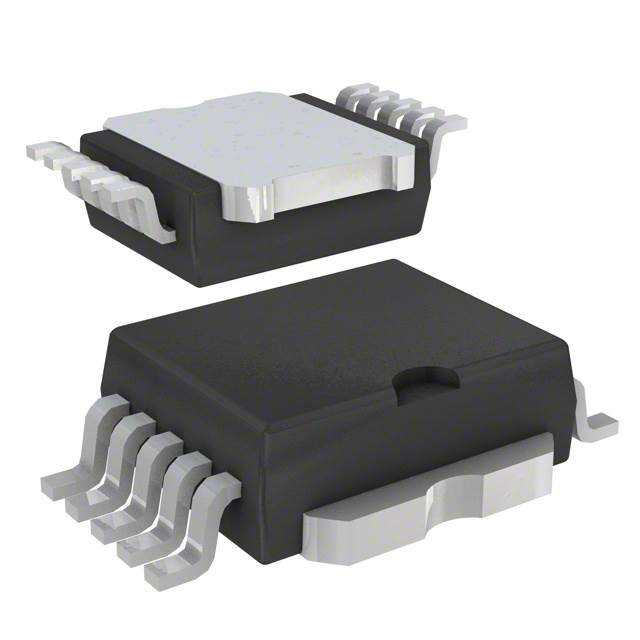

ST VIPER50ASP-E

Manufacturer No:

VIPER50ASP-E

Manufacturer:

Package:

PowerSO-10 Exposed Bottom Pad

Description:

10 Terminations 8V~15V 10 Pin VIPER50 AC to DC power converter VIPER? Series 1 Outputs Up to 200kHz

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

VIPER50ASP-E information

ST VIPER50ASP-E technical specifications, attributes, parameters and parts with similar specifications to ST VIPER50ASP-E.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
PowerSO-10 Exposed Bottom Pad

Number of Pins
10

Packaging
Tube

Series
VIPER?

JESD-609 Code
e3

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
10

ECCN Code
EAR99

Terminal Finish
Tin (Sn)

Max Operating Temperature
125°C

Min Operating Temperature
25°C

Power (Watts)
50W

Additional Feature
AUTOMATIC BURST MODE OPERATION IN STAND-BY CONDITION

Subcategory
Switching Regulator or Controllers

Max Power Dissipation
60W

Terminal Position
DUAL

Terminal Form
GULL WING

Number of Functions
1

Frequency
200kHz

Base Part Number
VIPER50

Pin Count
10

Output Voltage
700V

Input Voltage-Nom
13V

Analog IC - Other Type
SWITCHING REGULATOR

Output Current
1.5A

Voltage - Supply (Vcc/Vdd)
8V~15V

Control Features
Frequency Control, Soft Start, Sync

Input Voltage (Min)
9V

Topology
Flyback

Control Mode
CURRENT-MODE

Frequency - Switching
Up to 200kHz

Control Technique
PULSE WIDTH MODULATION

Rise Time
50ns

Fall Time (Typ)
100 ns

Switcher Configuration
SINGLE

Internal Switch(s)
Yes

Fault Protection
Current Limiting, Over Temperature

Output Isolation
Isolated

Voltage - Start Up
11V

Length
9.5mm

Height Seated (Max)
3.75mm

Width
7.5mm

Radiation Hardening
No

RoHS Status
ROHS3 Compliant

Download datasheets and manufacturer documentation for ST VIPER50ASP-E.

VIPER50ASP-E Overview

An embedded ac to dc converter is included in PowerSO-10 Exposed Bottom Pad package.Tube case is available for the ac dc converter.Surface Mount mounts this AC/DC converter.The AC DC converter utilizes a type SWITCHING REGULATOR analog IC.There is Up to 200kHz switching frequency.Supply voltage (Vcc/Vdd) does not need to exceed 8V~15V .As a result, it has a total of 10 terminations.In this ac/dc converter, there are 10 pins.There are 10 pins in total.The ac dc converters are suitable for mounting by Surface Mount .This AC to DC converter belongs to the VIPER? family of manufacturers.If you select the VIPER50 family, you will be able to search similar acdc converters.A total of 1 outputs are available for processing.The ac to dc conversions can be found in Switching Regulator or Controllers .1.5A is set as the output current.It produces a voltage of 700V .AC to DC converter reaches high efficiency when operated at a frequency of 200kHz .Additionally, AUTOMATIC BURST MODE OPERATION IN STAND-BY CONDITION can be discovered using this ACDC converter.A maximum value 125°C ensures that the AC to DC power converter runs steadily.Temperatures below [25°C are not allowed to be used on this isolated switch.

VIPER50ASP-E Features

Packaged with PowerSO-10 Exposed Bottom Pad
Switching Frequency at Up to 200kHz
With 10 pins
Output Current at 1.5A

VIPER50ASP-E Applications

There are a lot of STMicroelectronics
VIPER50ASP-E AC DC Converters applications.

Linear Adapter Replacements
Chargers for cell/cordless phones
PDAs
MP3
Portable audio
Adapters
Networking
Battery Chargers
Power Adaptors
Standby Power Supplies
