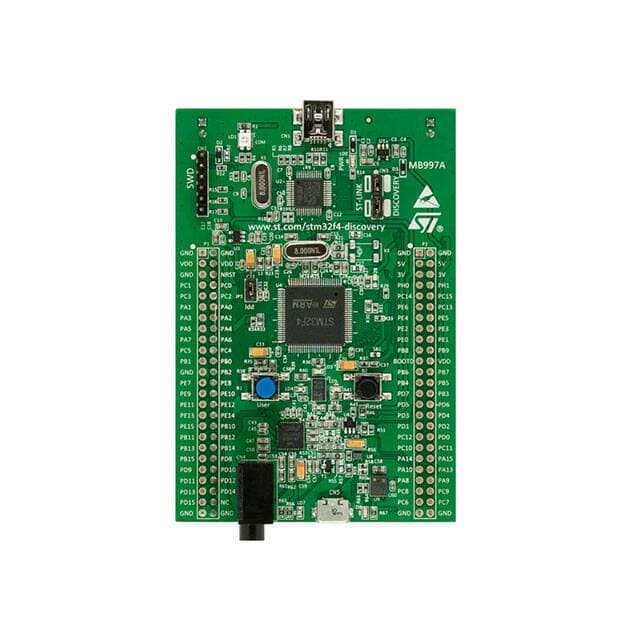

ST STM32F407G-DISC1

Manufacturer No:

STM32F407G-DISC1

Manufacturer:

Package:

Description:

Discovery Evaluation Platform MCU 32-Bit ARM® Cortex®-M4 32 Bits

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STM32F407G-DISC1 information

ST STM32F407G-DISC1 technical specifications, attributes, parameters and parts with similar specifications to ST STM32F407G-DISC1.

Type
Parameter

Mounting Type
Fixed

Series
STM32F4

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Type
MCU 32-Bit

Number of Bits
32

Core Processor
ARM® Cortex®-M4

Utilized IC / Part
STM32F407, STM32F417

Evaluation Kit
Yes

Core Architecture
ARM

Contents
Board(s)

Board Type
Evaluation Platform

Platform
Discovery

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ST STM32F407G-DISC1.

Datasheets:

stmicroelectronics-stm32f405rgt6-datasheets-1237.pdf

stmicroelectronics-stm32f4diswifi-datasheets-8171.pdf

stmicroelectronics-stm32f407gdisc1-datasheets-6008.pdf

stmicroelectronics-stm32f407gdisc1-datasheets-6009.pdf

STM32F407G-DISC1 Description

Based on the high-performance Arm® Cortex®-M4 32-bit RISC CPU that operates at a frequency of up to 168 MHz is the STM32F405xx and STM32F407xx family. A floating point unit (FPU) single precision is a characteristic of the Cortex-M4 core that supports all Arm single-precision data-processing instructions and data formats. Additionally, it incorporates a memory protection unit (MPU) that improves program security together with the whole range of DSP instructions.

High-speed embedded memories (Flash memory up to 1 Mbyte, up to 192 Kbytes of SRAM, up to 4 Kbytes of backup SRAM, and a wide range of upgraded I/Os and peripherals connected to two APB buses, three AHB buses, and a 32-bit multi-AHB bus matrix) are included in the STM32F405xx and STM32F407xx series.

All of the devices feature two general-purpose 32-bit timers, three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers, and two PWM timers for motor control. An authentic random number generator (RNG). They also have both conventional and cutting-edge communication interfaces.

STM32F407G-DISC1 Features

Up to 1 Mbyte of Flash memory

Up to 192+4 Kbytes of SRAM including 64-Kbyte of CCM (core coupled memory) data RAM

512 bytes of OTP memory

Flexible static memory controller supporting Compact Flash, SRAM, PSRAM, NOR and NAND memories

1.8 V to 3.6 V application supply and I/Os

POR, PDR, PVD and BOR

4-to-26 MHz crystal oscillator

Internal 16 MHz factory-trimmed RC (1% accuracy)

32 kHz oscillator for RTC with calibration

Internal 32 kHz RC with calibration

STM32F407G-DISC1 Applications

Temperature Measurement

Pressure Measurement

Flow Meters

Factory Automation and Process Control

User Guide
