Manufacturer No:

TDA7269A

Manufacturer:

ST

Package:

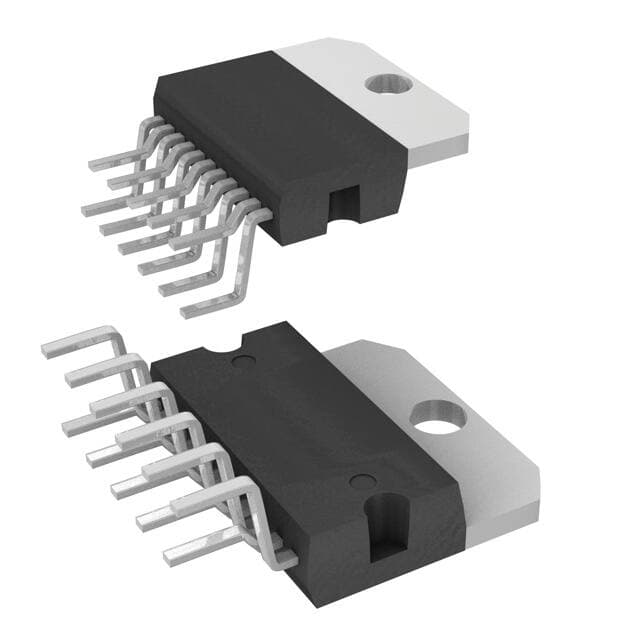

Multiwatt-11 (Vertical, Bent and Staggered Leads)

Description:

3A mA 22 kHz kHz 14W W Audio Amplifiers 17.75mm mm 5mm mm 40W W 11 pins Multiwatt-11 (Vertical, Bent and Staggered Leads)

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TDA7269A information

ST TDA7269A technical specifications, attributes, parameters and parts with similar specifications to ST TDA7269A.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 7 months ago)
  • Factory Lead Time
  • 6 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Multiwatt-11 (Vertical, Bent and Staggered Leads)
  • Number of Pins
  • 11
  • Operating Temperature
  • 0°C~70°C TA
  • Packaging
  • Tube
  • JESD-609 Code
  • e3
  • Feature
  • Depop, Mute, Short-Circuit and Thermal Protection, Standby
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 11
  • ECCN Code
  • EAR99
  • Type
  • Class AB
  • Terminal Finish
  • Matte Tin (Sn) - annealed
  • Subcategory
  • Audio/Video Amplifiers
  • Max Power Dissipation
  • 40W
  • Technology
  • BIPOLAR
  • Voltage - Supply
  • ±5V~20V
  • Terminal Position
  • ZIG-ZAG
  • Number of Functions
  • 1
  • Terminal Pitch
  • 1.7mm
  • Base Part Number
  • TDA7269
  • Output Type
  • 2-Channel (Stereo)
  • Number of Channels
  • 2
  • Nominal Supply Current
  • 3A
  • Power Dissipation
  • 40W
  • Quiescent Current
  • 60mA
  • Output Power
  • 14W
  • Supply Type
  • Dual
  • Input Offset Voltage (Vos)
  • 25mV
  • Bandwidth
  • 22 kHz
  • Voltage Gain
  • 80dB
  • Power Supply Rejection Ratio (PSRR)
  • 60dB
  • Gain
  • 80 dB
  • Max Dual Supply Voltage
  • 20V
  • Max Output Power
  • 14W
  • Min Dual Supply Voltage
  • 5V
  • Dual Supply Voltage
  • 18V
  • Input Bias Current
  • 500nA
  • Max Output Power x Channels @ Load
  • 14W x 2 @ 8 ?
  • Harmonic Distortion
  • 10%
  • Load Impedance
  • 8Ohm
  • Height
  • 17.75mm
  • Length
  • 19.6mm
  • Width
  • 5mm

Download datasheets and manufacturer documentation for ST TDA7269A.

Datasheets:

TDA7269A Description

The TDA7269A is a class AB dual Audio Power Amplifier designed for high quality sound application as Hi-Fi music centers and stereo TV sets. It has integrated short-circuit and thermal overload protection.
TDA7269A Features

? Wide Supply Voltage Range up to +20V
? Split Supply
? No POP at Turn-on/off
? Mute (Pop free)
? Stand-by feature (Low Iq)
? Short Circuit Protection to GND
? Thermal Overload Protection
TDA7269A Applications

? 5G Communication
? Electrification of automobile
? Industrial 4.0
? Public address systems
? Theatrical and concert sound reinforcement systems
? Domestic systems such as a stereo or home-theatre system

User Guide
