ST STPSC40H12CWL

Manufacturer No:

STPSC40H12CWL

Manufacturer:

Package:

TO-247LL, 3 PIN

Description:

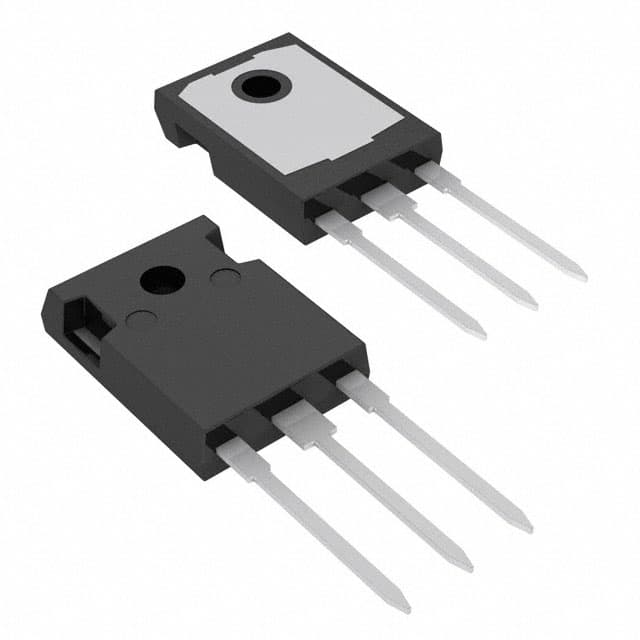

1200 V, 40 A High Surge Silicon Carbide Power Schottky Diode

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STPSC40H12CWL information

ST STPSC40H12CWL technical specifications, attributes, parameters and parts with similar specifications to ST STPSC40H12CWL.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
STMICROELECTRONICS

Package Description
TO-247LL, 3 PIN

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8541.10.00.80

Factory Lead Time
25 Weeks

Samacsys Manufacturer
STMicroelectronics

Application
POWER

Configuration
COMMON CATHODE, 2 ELEMENTS

Diode Element Material
SILICON CARBIDE

Diode Type
RECTIFIER DIODE

Forward Voltage-Max (VF)
1.5 V

JEDEC-95 Code
TO-247

JESD-30 Code
R-PSFM-T3

JESD-609 Code
e3

Non-rep Pk Forward Current-Max
120 A

Number of Elements
2

Number of Phases
1

Number of Terminals
3

Operating Temperature-Max
175 °C

Operating Temperature-Min
-40 °C

Output Current-Max
38 A

Package Shape
RECTANGULAR

Package Style
FLANGE MOUNT

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Rep Pk Reverse Voltage-Max
1200 V

Reverse Current-Max
120 µA

Surface Mount
NO

Technology
SCHOTTKY

Terminal Finish
Matte Tin (Sn) - annealed

Terminal Form
THROUGH-HOLE

Terminal Position
SINGLE

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Download datasheets and manufacturer documentation for ST STPSC40H12CWL.

Datasheets:

en.DM00367757.pdf

STPSC40H12CWL Overview

The forward voltage should always remain within 120?A and be monitored.An output voltage of 38A is the maximum it can handle.In this case, the forward voltage has to be set at 40A to operate the device.

STPSC40H12CWL Features

a forward voltage of 120?A
a forward voltage of 120?A
a maximum output voltage of 38A

STPSC40H12CWL Applications

There are a lot of STMicroelectronics
STPSC40H12CWL applications of rectifier diode array.

Rectifier for drives applications
Crowbar applications
Rectifiers for UBS
Battery chargers
Rectifiers in switch mode power supplies (SMPS)
Free wheeling diode in low voltage converters
General Rectification
