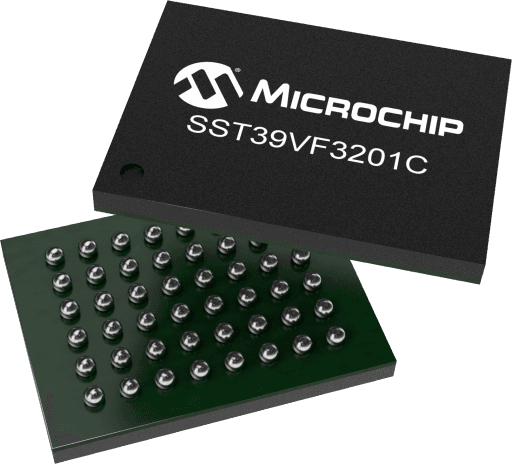

Microchip SST39VF3201C-70-4I-EKE

Manufacturer No:

SST39VF3201C-70-4I-EKE

Manufacturer:

Microchip

Package:

48-TFSOP (0.724, 18.40mm Width)

Description:

2.7V to 3.6V 32Mbit Multi-Purpose Flash

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SST39VF3201C-70-4I-EKE information

Microchip SST39VF3201C-70-4I-EKE technical specifications, attributes, parameters and parts with similar specifications to Microchip SST39VF3201C-70-4I-EKE.

Type
Parameter

Density
32 Mbit

Operating Voltage Min (V)
2.7

Operating Voltage Max (V)
3.6

Max. Clock Freq.
0 MHz

Read Access Speed
70 ns

Page Size (Bytes)
0

Write Protected
No

Endurance
100,000

Data Retention
0

Battery Backup
No

Download datasheets and manufacturer documentation for Microchip SST39VF3201C-70-4I-EKE.

Data Sheets:

b96ab15a1c3da5990b5652c3d06fabac.pdf

Brochures:

4c7bfd8d9a6158d9692835b89f06ce36.pdf

2dc20db33618cb5d244522d9f469ad70.pdf

The SST39VF3201C is 2M x16 CMOS Multi-Purpose Flash Plus (MPF+) manufactured with SST’s proprietary, high-performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. The SST39VF3201C write (Program or Erase) with a 2.7-3.6V power supply. These devices conform to JEDEC standard pin assignments for x16 memories.

Organized as 2M x16
Low Power Consumption (typical values at 5 MHz) – Active Current: 6 mA (typical) – Standby Current: 4 µA (typical) – Auto Low Power Mode: 4 µA (typical)
Hardware Block-Protection/WP# Input Pin – Top Block-Protection (top two 4-KWord blocks) for SST39VF3202C – Bottom Block-Protection (bottom two 4-KWord blocks) for SST39VF3201C
Sector-Erase Capability – Uniform 2 KWord sectors
Block-Erase Capability – Flexible block architecture – Eight 4-KWord blocks, 63 32-KWord blocks
Chip-Erase Capability
Erase-Suspend/Erase-Resume Capabilities
Hardware Reset Pin (RST#)
Security-ID Feature – SST: 128 bits; User: 128 words
Fast Erase and Word-Program: – Sector-Erase Time: 18 ms (typical) – Block-Erase Time: 18 ms (typical) – Chip-Erase Time: 35 ms (typical) – Word-Program Time: 7 µs (typical)
Packages Available – 48-lead TSOP (12mm x 20mm) – 48-ball TFBGA (6mm x 8mm)
All non-Pb (lead-free) devices are RoHS compliant
