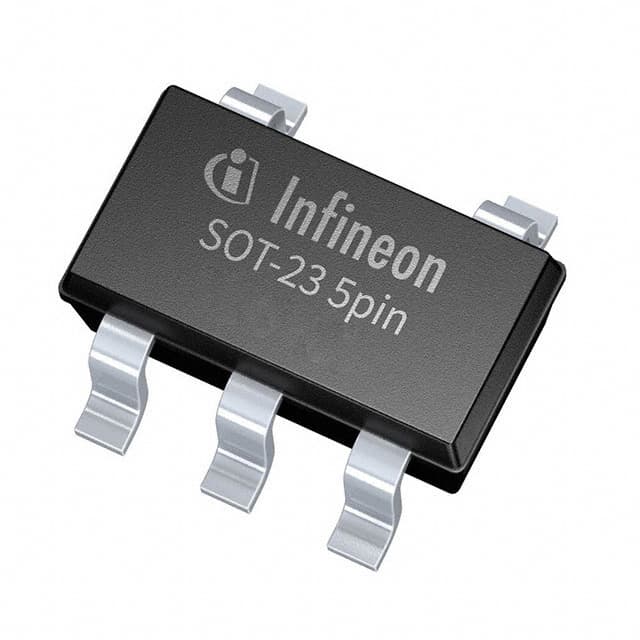

INFINEON 1EDN7512BXTSA1
INFINEON 1EDN7512BXTSA1

INFINEON 1EDN7512BXTSA1

Manufacturer No:

1EDN7512BXTSA1

Manufacturer:

INFINEON

Package:

SC-74A, SOT-753

Description:

Surface Mount Tape & Reel (TR) Active EAR99 Gate Drivers ICs Inverting, Non-Inverting 1 SC-74A, SOT-753

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1EDN7512BXTSA1 information

INFINEON 1EDN7512BXTSA1 technical specifications, attributes, parameters and parts with similar specifications to INFINEON 1EDN7512BXTSA1.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • SC-74A, SOT-753
  • Surface Mount
  • YES
  • Driver Configuration
  • Low-Side
  • Operating Temperature
  • -40°C~150°C TJ
  • Packaging
  • Tape & Reel (TR)
  • Series
  • EiceDriver™
  • Published
  • 2016
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 5
  • ECCN Code
  • EAR99
  • Voltage - Supply
  • 4.5V~20V
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Number of Functions
  • 1
  • Supply Voltage
  • 12V
  • Terminal Pitch
  • 0.95mm
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • JESD-30 Code
  • R-PDSO-G5
  • Output Current
  • 4A
  • Input Type
  • Inverting, Non-Inverting
  • Rise Time
  • 6.5ns
  • Fall Time (Typ)
  • 4.5 ns
  • Rise / Fall Time (Typ)
  • 6.5ns 4.5ns
  • Interface IC Type
  • BUFFER OR INVERTER BASED MOSFET DRIVER
  • Channel Type
  • Single
  • Number of Drivers
  • 1
  • Turn On Time
  • 0.025 μs
  • Gate Type
  • N-Channel MOSFET
  • Current - Peak Output (Source, Sink)
  • 4A 8A
  • Max Junction Temperature (Tj)
  • 150°C
  • High Side Driver
  • NO
  • Turn Off Time
  • 0.025 μs
  • Height
  • 1.45mm
  • Length
  • 2.9mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for INFINEON 1EDN7512BXTSA1.

Datasheets:

Other Related Documents:

ConflictMineralStatement:

Product Description:

The Infineon Technologies 1EDN7512BXTSA1 is a high-performance, single-channel gate driver IC designed for low-side gate driving applications. This EiceDriver? series device is optimized for use in a wide range of applications, including industrial automation, automotive, and consumer electronics.

Features:

  • Single-channel, low-side gate driver with a peak output current of 4A (source) and 8A (sink)
  • Inverting and non-inverting input types for flexibility in circuit design
  • Low propagation delay of 19 ns and rise/fall times of 6.5 ns and 4.5 ns, respectively
  • Operating temperature range of -40°C to 150°C, making it suitable for harsh environments
  • RoHS3 compliant and Pb-free, ensuring eco-friendliness and reliability
  • Available in a compact SC-74A and SOT-753 package, suitable for surface-mount applications

Applications:

  • Primary applications: Industrial automation, automotive, and consumer electronics
  • Secondary applications: Medical devices, aerospace, and defense systems

Alternative Parts:

  • 1EDN7511BXTSA1 (single-channel, high-side gate driver)
  • 1EDN7513BXTSA1 (dual-channel, low-side gate driver)

Embedded Modules:

  • This gate driver IC is commonly used in various embedded systems, including:
    • Industrial control systems
    • Automotive electronics
    • Consumer electronics

FAQs:

Q: What is the maximum junction temperature of this gate driver IC? A: The maximum junction temperature is 150°C.

Q: Is this device RoHS compliant? A: Yes, the 1EDN7512BXTSA1 is RoHS3 compliant.

Q: What is the operating voltage range of this gate driver IC? A: The operating voltage range is 4.5V to 20V.

Q: Is this device suitable for high-reliability applications? A: Yes, this gate driver IC is designed for high-reliability applications and is suitable for use in harsh environments.

Q: What is the packaging option for this device? A: The packaging option is Tape & Reel (TR) for surface-mount applications.

Q: What is the factory lead time for this device? A: The factory lead time is 12 weeks.

Q: Is this device Pb-free? A: Yes, the 1EDN7512BXTSA1 is Pb-free.
