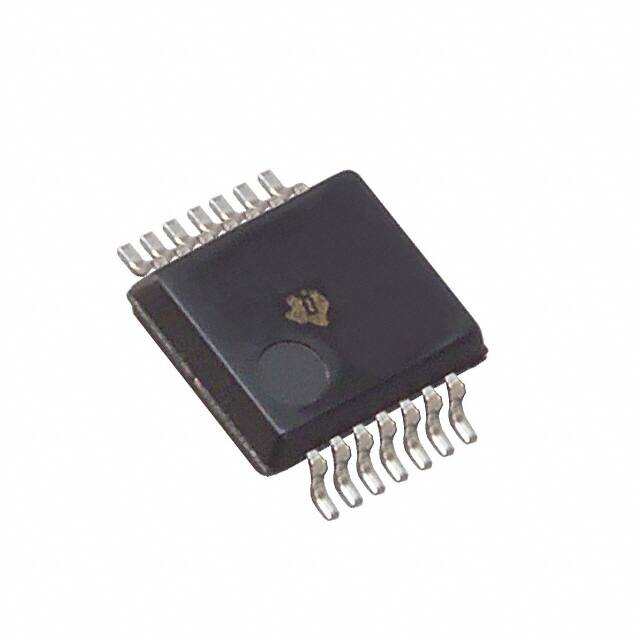

TI SN74ALS05ADBRE4

Manufacturer No:

SN74ALS05ADBRE4

Manufacturer:

Package:

14-SSOP (0.209, 5.30mm Width)

Description:

5V V 54 ns ns Gates & Inverters 8mA mA Surface Mount Surface Mount 4.5V~5.5V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SN74ALS05ADBRE4 information

TI SN74ALS05ADBRE4 technical specifications, attributes, parameters and parts with similar specifications to TI SN74ALS05ADBRE4.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
14-SSOP (0.209, 5.30mm Width)

Number of Pins
14

Operating Temperature
0°C~70°C

Packaging
Tape & Reel (TR)

Series
74ALS

Feature
Open Collector

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
14

HTS Code
8542.39.00.01

Subcategory
Gates

Packing Method
TAPE AND REEL

Technology
TTL

Voltage - Supply
4.5V~5.5V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
6

Supply Voltage
5V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
74ALS05

Qualification Status
Not Qualified

Polarity
Inverting

Supply Voltage-Max (Vsup)
5.5V

Power Supplies
5V

Supply Voltage-Min (Vsup)
4.5V

Output Current
8mA

Propagation Delay
54 ns

Family
ALS

Logic Function
Buffer, Inverter

Current - Output High, Low
- 8mA

Logic Type
Inverter

Max I(ol)
0.008 A

Max Propagation Delay @ V, Max CL
54ns @ 5V, 50pF

Schmitt Trigger
NO

Logic Level - Low
0.8V

Logic Level - High
2V

Power Supply Current-Max (ICC)
4.2mA

Number of Output Lines
6

Height Seated (Max)
2mm

Width
5.3mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for TI SN74ALS05ADBRE4.

SN74ALS05ADBRE4 Overview

This part is conveniently packaged in 14-SSOP (0.209, 5.30mm Width), making it easy to ship abroad. This high-reliability packaging method uses advanced packaging methods Tape & Reel (TR). Inverter logic governs its operation. Voltage 4.5V~5.5V ensures the part's full functionality. Operation at a temperature around 0°C~70°C. A Surface Mount mount is used for this part. Current output is - 8mA in both the high and low states. The number 74ALS refers to it. In total, there have been 14 terminations. A significant improvement in the user experience can be achieved by the part since it has 6 functions. There is a chip in this package that is a part of ALS. Search with 74ALS05 if you are looking for device variants. An injection of 14 pins is performed into the body of the part. It is widely used in a variety of applications due to its Surface Mount mounting. To find out what the 14 pins do, please refer to the datasheets. It is a typical Gates logic device. Supplying the device requires a minimum voltage of 4.5V. In this case, Vsup reaches its maximum value. There is a method TAPE AND REEL in it that is designed for the industry. Datasheets indicate that this part requires 5V power supply. Current output of the device is rated at 8mA. Open Collector is featured in it.

SN74ALS05ADBRE4 Features

Inverter Logic Type
Operating Temperature: 0°C~70°C
ALS Family
Output Current: 8mA

SN74ALS05ADBRE4 Applications

There are a lot of Texas Instruments
SN74ALS05ADBRE4 Gates and Inverters applications.

VCD
Computer
Television
Washing machine
Range hood
Refrigerator
VCR
Massager
Fan
Illumination
