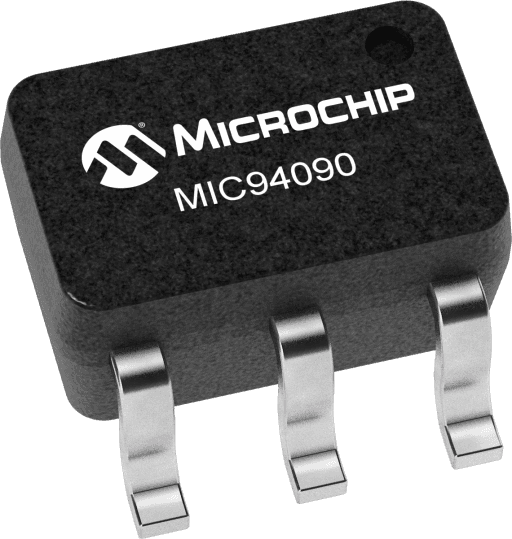

Microchip MIC94090YC6-TR

Manufacturer No:

MIC94090YC6-TR

Manufacturer:

Microchip

Package:

6-TSSOP, SC-88, SOT-363

Description:

High Side Load Switch 1.2A, 130m

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC94090YC6-TR information

Microchip MIC94090YC6-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC94090YC6-TR.

Type
Parameter

Driver Type
Single High-Side Load Switches

Vin Min (V)
1.7

Vin Max (V)
5.5

Max SW Current (A)
1.2

RDS ON @5V (mO)
130

Enable Logic
High True

VEN (V)
1.25

Oja (C/W)
240, 140

Download datasheets and manufacturer documentation for Microchip MIC94090YC6-TR.

Data Sheets:

8e5707b12f0252758243b0ad59101dce.pdf

The MIC94090/1/2/3/4/5 is a family of high-side load switches designed for operation from 1.7V to 5.5V input voltage. The load switch pass element is an internal 130mΩ RDS(ON) P-channel MOSFET which enables the device to support up to 1.2A continuous current. Additionally, the load switch supports 1.5V logic level control and shutdown features.

The MIC94090 and MIC94091 feature rapid turn on. The MIC94092 and MIC94093 provide a slew rate controlled soft-start turn-on of 790µs, while the MIC94094 and MIC94095 provide a slew rate controlled soft-start turn-on of 120µs. The soft-start feature option prevents an in-rush current event from pulling down the input supply voltage.

The MIC94091, MIC94093, and MIC94095 include a 250Ω auto discharge load circuit that is switched on when the load switch is disabled.

An active pull-down on the enable input keeps the MIC94090/1/2/3/4/5 in a default OFF state until the enable pin is pulled above 1.25V. Internal level shift circuitry allows low voltage logic signals to switch higher supply voltages. The enable voltage can be as high as 5.5V and is not limited by the input voltage.

The MIC94090/1/2/3/4/5 operating voltage range makes them ideal for Lithium ion and NiMH/NiCad/Alkaline battery powered systems, as well as non-battery powered applications. The devices provide low quiescent current and low shutdown current to maximize battery life.

1.7V to 5.5V input voltage range
1.2A continuous operating current
130mO R DS(ON)
Internal level shift for CMOS/TTL control logic
Ultra low quiescent current
Micro-power shutdown current
Rapid turn-on: MIC94090/1
Soft-Start: MIC94092/3 (790µs), MIC94094/5 (120µs)
Load discharge circuit: MIC94091/3/5
Industry standard SC-70-6 package
