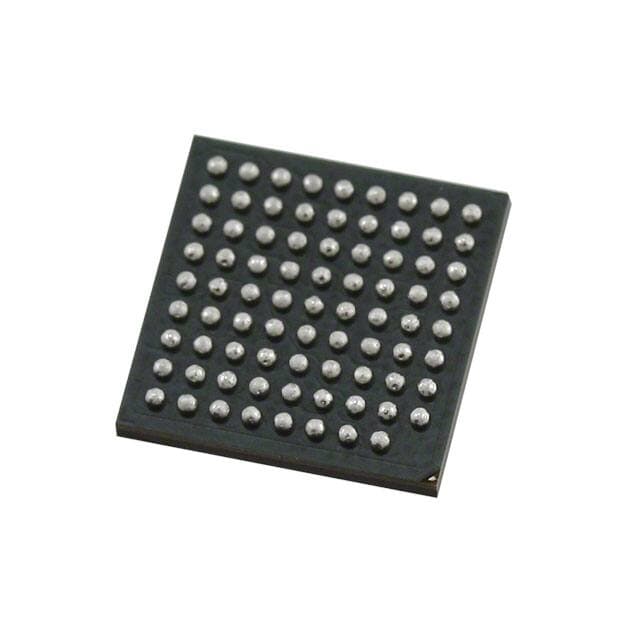

SKYWORKS SI5375B-A-BL
SKYWORKS SI5375B-A-BL

SKYWORKS SI5375B-A-BL

Manufacturer No:

SI5375B-A-BL

Manufacturer:

SKYWORKS

Package:

80-LBGA

Description:

1.8V Clock Generator, Jitter Attenuator 808MHz SI5375 Clock Generators DSPLL® Series 80-LBGA 80 Terminals Surface Mount 1.71V~2.75V Tray

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SI5375B-A-BL information

SKYWORKS SI5375B-A-BL technical specifications, attributes, parameters and parts with similar specifications to SKYWORKS SI5375B-A-BL.

  • Type
  • Parameter
  • Factory Lead Time
  • 4 Weeks
  • Contact Plating
  • Lead, Tin
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 80-LBGA
  • Surface Mount
  • YES
  • Number of Pins
  • 80
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tray
  • Series
  • DSPLL®
  • Published
  • 1997
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 80
  • ECCN Code
  • EAR99
  • Type
  • Clock Generator, Jitter Attenuator
  • Additional Feature
  • ALSO OPERATES AT 2.5 V SUPPLY
  • Voltage - Supply
  • 1.71V~2.75V
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • BALL
  • Supply Voltage
  • 1.8V
  • Terminal Pitch
  • 1mm
  • Base Part Number
  • SI5375
  • Output
  • CML, LVCMOS, LVDS, LVPECL
  • Power Supplies
  • 1.8/2.5V
  • Nominal Supply Current
  • 980mA
  • Frequency (Max)
  • 808MHz
  • Input
  • Clock
  • Ratio - Input:Output
  • 1:1
  • Primary Clock/Crystal Frequency-Nom
  • 710MHz
  • PLL
  • Yes
  • Differential - Input:Output
  • Yes/Yes
  • Length
  • 10mm
  • Height Seated (Max)
  • 1.56mm
  • Width
  • 10mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for SKYWORKS SI5375B-A-BL.

Datasheets:

SI5375B-A-BL Overview


The Tray method is used for packaging clock ICs. As part of the 80-LBGA package, this clock generator is embedded. There are 80 terminations found in this file. To operate this time clock generator, 1.8V voltage should be applied. In this clock generator, Clock is used as the input to the clock. For a full understanding of the electronic part's performance, 4 circuits are implemented. An up to 808MHz frequency is provided by this clock-based RF synthesizer. The Surface Mount allows the electrical component to be installed conveniently on the panel. In terms of supply voltage, RF synthesizer works with 1.71V~2.75V. Test statistics estimate a temperature of -40°C~85°C, which should be set as the ambient temperature. The frequency synthesizer in this product is compatible with all levels of CML, LVCMOS, LVDS, LVPECL logic. It has been classified as a Clock Generator, Jitter Attenuator electronic part, which means that it is a semiconductor. It is possible to find its related electronic parts by searching for the base part number SI5375. There are 80 pins on the frequency generator that are available for use. There is a ALSO OPERATES AT 2.5 V SUPPLY feature on this frequency generator in order to produce a better clock signal. DSPLL® series electronic parts are used in this part.

SI5375B-A-BL Features


Available in the 80-LBGA
Supply voltage of 1.8V


SI5375B-A-BL Applications


There are a lot of Silicon Labs
SI5375B-A-BL Clock Generators applications.


  • Wireless base station for LTE, LTE-advanced
  • Picocells, femtocells and small cells
  • Sampling clocks for ADC and DAC
  • 1 Gigabit Ethernet
  • 10 Gigabit Ethernet
  • FPGA and processor clocks
  • Line cards used in telephone exchange
  • Fiber Channel
  • PCI express cards
  • Infotainment systems
