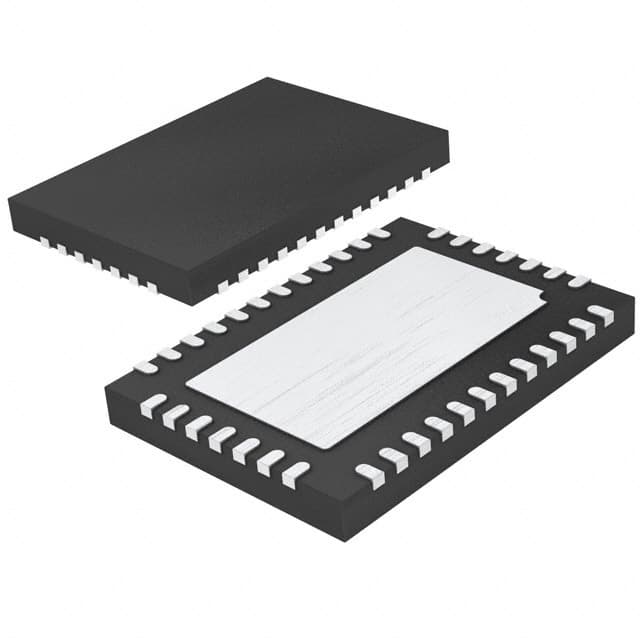

ADI LTC3576EUFE#PBF
Manufacturer No:
LTC3576EUFE#PBF
Manufacturer:
Package:
38-WFQFN Exposed Pad
Description:
38 Terminations 4.35V~5.5V 38 Pin LTC3576 Specialized Power Management ICs 3 Outputs 1 Functions
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
LTC3576EUFE#PBF information
ADI LTC3576EUFE#PBF technical specifications, attributes, parameters and parts with similar specifications to ADI LTC3576EUFE#PBF.
- Type
- Parameter
- Lifecycle Status
- PRODUCTION (Last Updated: 3 weeks ago)
- Factory Lead Time
- 8 Weeks
- Mounting Type
- Surface Mount
- Package / Case
- 38-WFQFN Exposed Pad
- Surface Mount
- YES
- Number of Pins
- 38
- Operating Temperature
- -40°C~85°C
- Packaging
- Tube
- Published
- 2005
- JESD-609 Code
- e3
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 38
- ECCN Code
- EAR99
- Terminal Finish
- Matte Tin (Sn)
- Applications
- Handheld/Mobile Devices
- Subcategory
- Power Management Circuits
- Technology
- CMOS
- Voltage - Supply
- 4.35V~5.5V
- Terminal Position
- QUAD
- Terminal Form
- NO LEAD
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 1
- Supply Voltage
- 5V
- Time@Peak Reflow Temperature-Max (s)
- 30
- Base Part Number
- LTC3576
- Pin Count
- 38
- Number of Outputs
- 3
- Qualification Status
- Not Qualified
- Output Voltage
- 5V
- Number of Channels
- 1
- Analog IC - Other Type
- POWER SUPPLY MANAGEMENT CIRCUIT
- Adjustable Threshold
- YES
- Min Input Voltage
- 4.35V
- Max Input Voltage
- 5.5V
- Nominal Input Voltage
- 5.5V
- Number of Cells
- 1
- Max Charge Current
- 1.5A
- Length
- 6mm
- Height Seated (Max)
- 0.8mm
- Width
- 4mm
- REACH SVHC
- No SVHC
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for ADI LTC3576EUFE#PBF.
ConflictMineralStatement:
LTC3576EUFE#PBF Overview
The way of Tube is acceptable for shipping the power management.To facilitate transportation, it is packaged the power management in 38-WFQFN Exposed Pad .Surface Mount is a universal mounting method that is easy to adapt.Among other applications, this power management targets Handheld/Mobile Devices .It is recommended that you set the operating temperature of the power management ic to -40°C~85°C in order to prevent malfunctions.For its operation, this power management requires 4.35V~5.5V voltage.Check out search LTC3576 for more power ic's pin-to-pin solutions.There are 38 terminals on the power management.The instruments designs is highly regarded as a POWER SUPPLY MANAGEMENT CIRCUIT analog IC.38 Pins are available on this power managment ic.The power manager can perform numerous demanding tasks when supplied with 5V voltage.The power ic's pinout starts with 38 pins.The item belongs to the series Power Management Circuits .A network of 1 channels maintains the quality of output by cooperating together.There are 3 outputs in total supported by it.This ic power supply outputs a voltage of 5V volts.
LTC3576EUFE#PBF Features
Mainly used in Handheld/Mobile Devices applications
Operating temperature: -40°C~85°C
POWER SUPPLY MANAGEMENT CIRCUIT analog IC
3 Outputs
LTC3576EUFE#PBF Applications
There are a lot of Linear Technology/Analog Devices
LTC3576EUFE#PBFPower Management applications.
- SmartPhones
- Portable Navigation Devices
- Portable Media Players
- Portable Systems
- Hand-Held Systems
- Space satellite point of load supply
- Communications payload
- Optical imaging payload
- Desktop PC
- Motherboard
