SAMTEC QMS-052-06.75-L-D-PC4

Manufacturer No:

QMS-052-06.75-L-D-PC4

Manufacturer:

Package:

Description:

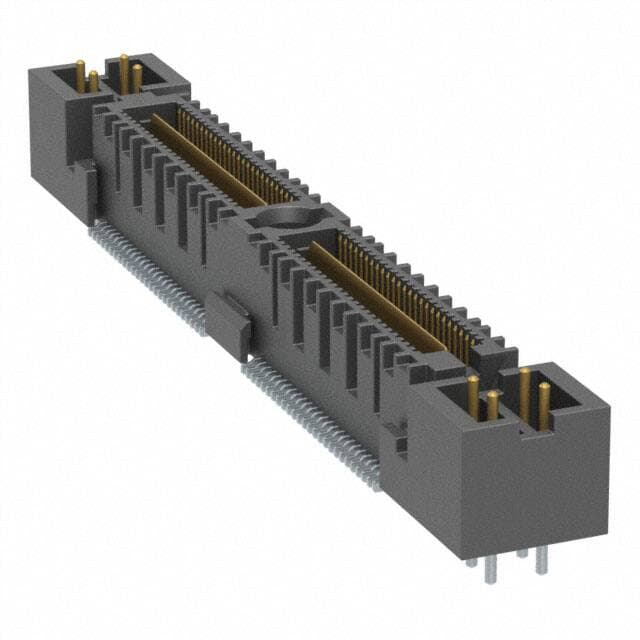

Header, Outer Shroud Contacts Tray 2 Rows 0.025 0.64mm Surface Mount, Through Hole 104 Positions Power Q2™ QMS Gold Solder Bronze

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

QMS-052-06.75-L-D-PC4 information

SAMTEC QMS-052-06.75-L-D-PC4 technical specifications, attributes, parameters and parts with similar specifications to SAMTEC QMS-052-06.75-L-D-PC4.

Type
Parameter

Contact Material
Bronze

Mounting Type
Surface Mount, Through Hole

Housing Material
Polymer

Mounting Option 1
LOCKING

Board Mounting Option
SPLIT BOARD LOCK

Packaging
Tray

Series
Power Q2™ QMS

JESD-609 Code
e3

Feature
Board Guide, Ground Bus (Plane), Power Pins (8)

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Connector Type
Header, Outer Shroud Contacts

Number of Positions
104

Max Operating Temperature
125°C

Min Operating Temperature
-55°C

Number of Rows
2

Gender
Male

Subcategory
Headers and Edge Type Connectors

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Option
GENERAL PURPOSE

Pitch
0.025 0.64mm

Total Number of Contacts
112

Orientation
Straight

Depth
7.52mm

Number of Conductors
ONE

Reference Standard
UL, CSA

Contact Finish
Gold

Reliability
COMMERCIAL

Number Of PCB Rows
2

PCB Contact Pattern
RECTANGULAR

Mating Information
MULTIPLE MATING PARTS AVAILABLE

Housing Color
Black

Rated Current (Signal)
1.5A

Contact Style
CENTRONIC

Contact Resistance
15mOhm

Insulation Resistance
5000000000Ohm

Body/Shell Style
PLUG

Max Voltage Rating (AC)
300V

Dielectric Withstanding Voltage
1100VAC V

PCB Contact Row Spacing
6.604 mm

Durability
1000 Cycles

Contact Pattern
RECTANGULAR

Download datasheets and manufacturer documentation for SAMTEC QMS-052-06.75-L-D-PC4.

QMS-052-06.75-L-D-PC4 Overview

The product is packaged in Header, Outer Shroud Contacts.It has been determined that a Tray case is necessary to package the product.This device is mounted in the Surface Mount, Through Hole position.There is a product in the Power Q2™ QMS Series.This can be ensured when the system is in operation by maintaining Board Guide, Ground Bus (Plane), Power Pins (8).When the temperature is below 125°C, it is best to use it.A minimum operating temperature of -55°C is required for this device.

QMS-052-06.75-L-D-PC4 Features

Power Q2™ QMS series
Package / Case: Tray
Mounting Type:Surface Mount, Through Hole
Max Operating temperature at -55°C

QMS-052-06.75-L-D-PC4 Applications

There are a lot of Samtec Inc.
QMS-052-06.75-L-D-PC4 Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
