SAMTEC ERM5-040-05.0-L-DV-K-TR

Manufacturer No:

ERM5-040-05.0-L-DV-K-TR

Manufacturer:

Package:

Description:

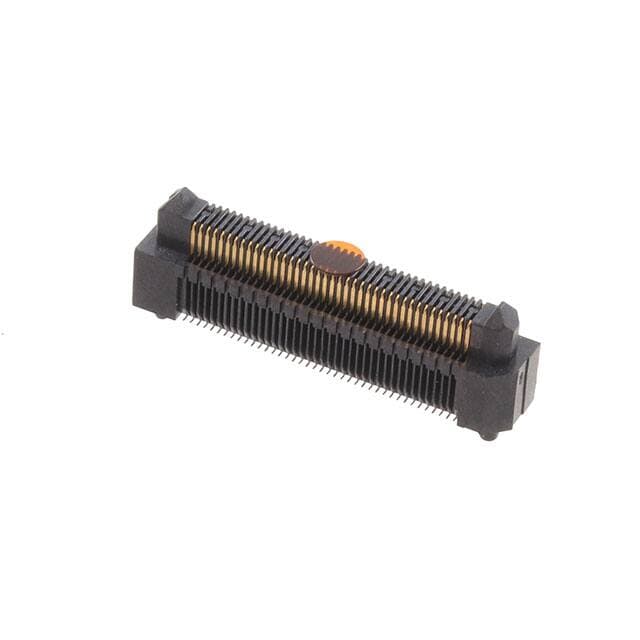

Header, Outer Shroud Contacts Tape & Reel (TR) 2 Rows 0.020 0.50mm Surface Mount 80 Positions Edge Rate™ ERM5 Gold Solder

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ERM5-040-05.0-L-DV-K-TR information

SAMTEC ERM5-040-05.0-L-DV-K-TR technical specifications, attributes, parameters and parts with similar specifications to SAMTEC ERM5-040-05.0-L-DV-K-TR.

Type
Parameter

Factory Lead Time
3 Weeks

Mounting Type
Surface Mount

Insulation Material
LIQUID CRYSTAL POLYMER (LCP)

Mounting Option 1
LOCKING

Packaging
Tape & Reel (TR)

Series
Edge Rate™ ERM5

JESD-609 Code
e3

Feature
Board Guide, Pick and Place

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Connector Type
Header, Outer Shroud Contacts

Number of Positions
80

Number of Rows
2

Gender
Male

Additional Feature
EDGE RATE CONTACT

Subcategory
Headers and Edge Type Connectors

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Mixed Contacts
NO

Option
GENERAL PURPOSE

Pitch
0.020 0.50mm

Number of Conductors
ONE

Reference Standard
UL

Contact Finish
Gold

Reliability
COMMERCIAL

Body Length or Diameter
1.055 inch

Number Of PCB Rows
2

PCB Contact Pattern
RECTANGULAR

Mating Information
MULTIPLE MATING PARTS AVAILABLE

Body Breadth
0.195 inch

Operating Temperature (Min)
-55°C

Body Depth
0.309 inch

Rated Current (Signal)
1.5A

Contact Style
CENTRONIC

Contact Pattern
RECTANGULAR

Insulator Color
BLACK

Contact Finish Thickness
10.0μin 0.25μm

Plating Thickness
10μin

Height Above Board
0.309 7.85mm

Stack Height (Mating)
10mm 12mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for SAMTEC ERM5-040-05.0-L-DV-K-TR.

ERM5-040-05.0-L-DV-K-TR Overview

Packaging for this item is Header, Outer Shroud Contacts.It is necessary to use a Tape & Reel (TR) case for packaging the product.There is a mounting type of Surface Mount for this device.This product is part of the Edge Rate™ ERM5 Series.In operation, it is possible to ensure that Board Guide, Pick and Place is maintained.Moreover, there are a number of other features, including EDGE RATE CONTACT, to name just a few.
