SAMTEC EHT-105-01-S-D-RA

Manufacturer No:

EHT-105-01-S-D-RA

Manufacturer:

Package:

Description:

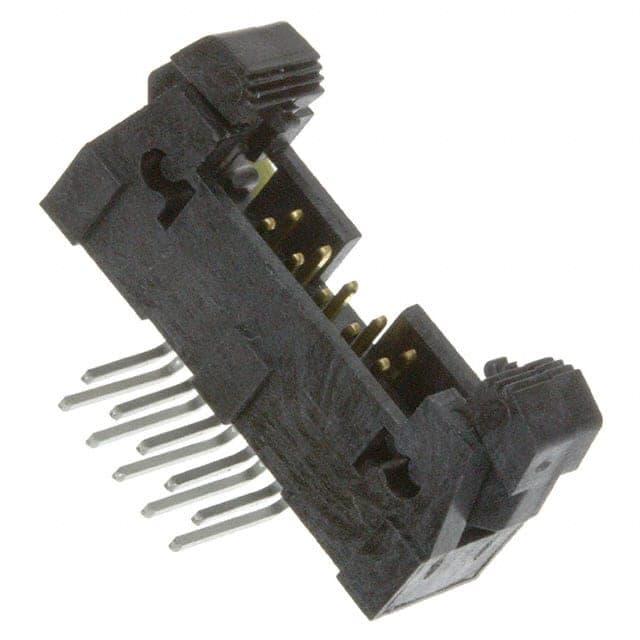

EHT Series 2-Row Header Solder Phosphor Bronze Tube Through Hole, Right Angle Gold Liquid Crystal Polymer (LCP) 10-Position Board to Cable/Wire 0.300 7.62mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EHT-105-01-S-D-RA information

SAMTEC EHT-105-01-S-D-RA technical specifications, attributes, parameters and parts with similar specifications to SAMTEC EHT-105-01-S-D-RA.

Type
Parameter

Factory Lead Time
4 Weeks

Contact Material
Phosphor Bronze

Mount
Through Hole

Mounting Type
Through Hole, Right Angle

Contact Shape
Square

Insulation Material
Liquid Crystal Polymer (LCP)

Housing Material
Polymer

Operating Temperature
-55°C~125°C

Packaging
Tube

Series
EHT

Published
2000

JESD-609 Code
e3

Feature
Keying Slot

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Connector Type
Header

Number of Positions
10

Number of Rows
2

Gender
Male

Additional Feature
LATCHED

Fastening Type
Latch Lock/Eject Hooks

Contact Finish - Mating
Gold

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Orientation
Right Angle

Depth
15.71mm

Insulation Height
0.300 7.62mm

Style
Board to Cable/Wire

Number of Positions Loaded
All

Current Rating
3A

Pitch - Mating
0.079 2.00mm

Number of Conductors
ONE

Reference Standard
UL

Reliability
COMMERCIAL

Row Spacing - Mating
0.079 (2.00mm)

Contact Length - Post
0.120 3.05mm

Shrouding
Shrouded - 4 Wall

Number Of PCB Rows
2

Contact Finish - Post
Tin

Contact Length - Mating
0.120 3.05mm

PCB Contact Pattern
RECTANGULAR

Download datasheets and manufacturer documentation for SAMTEC EHT-105-01-S-D-RA.

EHT-105-01-S-D-RA Overview

The product comes in a package of Header.Through Hole, Right Angle is the type of mounting for the device.To package the product, a Tube case is used.The product is a member of the EHT Series.Among other features are LATCHED, to name only a few.It is more powerful in many ways due to its Keying Slot feature.It is mounted by Through Hole.It operates at an operating temperature of -55°C~125°C.

EHT-105-01-S-D-RA Features

EHT series

EHT-105-01-S-D-RA Applications

There are a lot of Samtec Inc.
EHT-105-01-S-D-RA Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
