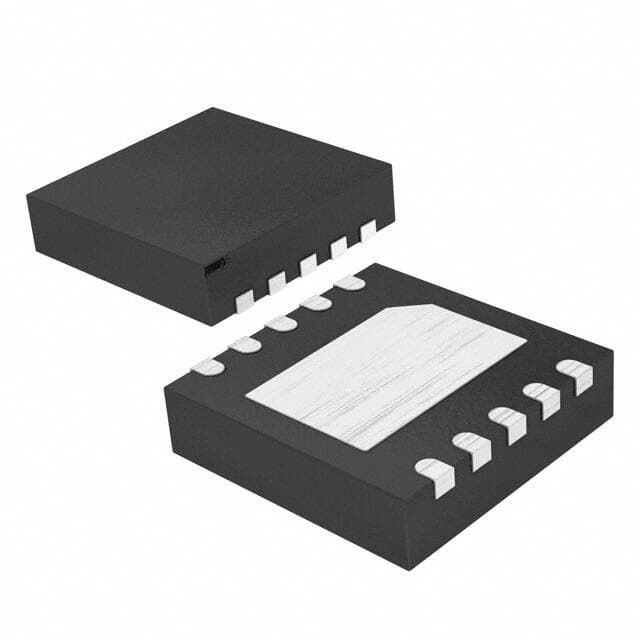

Manufacturer No:

PX3517FTMA1

Manufacturer:

INFINEON

Package:

10-VFDFN Exposed Pad

Description:

Surface Mount Tape & Reel (TR) Not For New Designs EAR99 Gate Drivers ICs Non-Inverting 2 30V V 10-VFDFN Exposed Pad

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PX3517FTMA1 information

INFINEON PX3517FTMA1 technical specifications, attributes, parameters and parts with similar specifications to INFINEON PX3517FTMA1.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 10-VFDFN Exposed Pad
  • Number of Pins
  • 10
  • Driver Configuration
  • Half-Bridge
  • Logic voltage-VIL, VIH
  • 0.8V 2.5V
  • Operating Temperature
  • -40°C~150°C TJ
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2013
  • JESD-609 Code
  • e4
  • Part Status
  • Not For New Designs
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 10
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
  • Voltage - Supply
  • 4.5V~8V
  • Terminal Position
  • DUAL
  • Terminal Form
  • NO LEAD
  • Supply Voltage
  • 5V
  • Terminal Pitch
  • 0.5mm
  • Number of Outputs
  • 1
  • Qualification Status
  • Not Qualified
  • Max Output Current
  • 2A
  • Input Type
  • Non-Inverting
  • Rise / Fall Time (Typ)
  • 10ns 10ns
  • Channel Type
  • Synchronous
  • Number of Drivers
  • 2
  • Gate Type
  • N-Channel MOSFET
  • Current - Peak Output (Source, Sink)
  • 2A 2A
  • High Side Voltage - Max (Bootstrap)
  • 30V
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for INFINEON PX3517FTMA1.

Datasheets:

Other Related Documents:

PCN Packaging:

ConflictMineralStatement:

PX3517FTMA1 Overview


There is greater flexibility with the 10-VFDFN Exposed Pad package.The packaging method is indicated by Tape & Reel (TR).A total of 2 drivers are integrated into its configuration.Surface Mount is mounted in the way.By using 4.5V~8V supply voltage, it is able to demonstrate its superiority.The gate type on this device is N-Channel MOSFET.This device allows temperatures in the range of -40°C~150°C TJ.A type of Non-Inverting is used for input in this program.Mosfet driver is based on 10 terminations.Mosfet driver is mounted using Surface Mount.Devices have 10 pins available.The device is specifically designed to function with a supply voltage of 5V V.An output current as high as 2A can be achieved at maximum power.Mosfet driver is possible to set the high-side voltage - Max (Bootstrap) to 30V.Mosfet driver is based on a basis of 1 outputs that have been integrated.Due to its power supply of 5V, it provides an effective solution to power supply problems for a wide range of applications.

PX3517FTMA1 Features


Embedded in the Tape & Reel (TR) package
2 drivers
Employing a gate type of N-Channel MOSFET
10 pins
High-side voltage - Max (Bootstrap) of 30V


PX3517FTMA1 Applications


There are a lot of Infineon Technologies
PX3517FTMA1 gate drivers applications.


  • Head-up and Head mounted displays
  • High current laser/LED systems
  • LCD/LCoS/DLP portable and embedded pico projectors
  • Multicolor LED/laser displays
  • Smart Phones
  • Portable Navigation Devices
  • Portable Media Players
  • Motor Controls
  • DC-DC Converters
  • AC-DC Inverters
