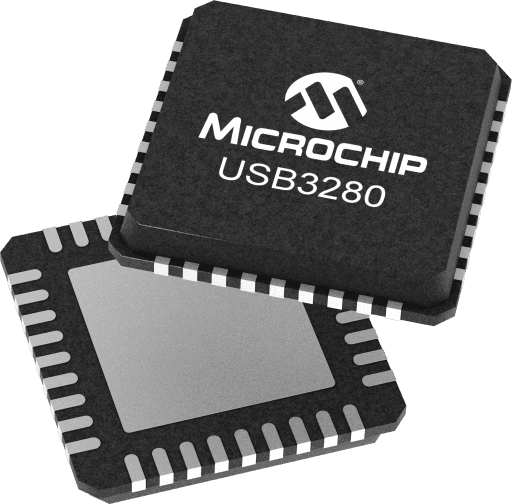

Microchip USB3280-AEZG

Manufacturer No:

USB3280-AEZG

Manufacturer:

Microchip

Package:

36-VFQFN Exposed Pad

Description:

The Microchip USB3280 is an inudstrial temperature qualified high speed USB 2.0 physical layer (PHY) interface with UTMI interface.

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

USB3280-AEZG information

Microchip USB3280-AEZG technical specifications, attributes, parameters and parts with similar specifications to Microchip USB3280-AEZG.

Type
Parameter

BatteryChargerDetection
No

CrystalSupport
Yes

HostBasedIF
No

IOVoltage
3.3V

IntegratedUSBSwitch
No

Reference Clock Freq
24MHz

TempRange Max
85

TempRange Min
-40

ULPIInputClockMode
No

Upstream Port
UTMI

Download datasheets and manufacturer documentation for Microchip USB3280-AEZG.

The USB3280 provides the Physical Layer (PHY) interface to a USB 2.0 Device Controller. The IC is available in a 36-pin RoHS compliant QFN.

The USB3280 is an industrial temperature USB 2.0 physical layer transceiver (PHY) integrated circuit. Microchip's proprietary technology results in low power dissipation, which is ideal for building a bus powered USB 2.0 peripheral. The PHY uses an 8-bit bidirectional parallel interface, which complies with the USB Transceiver Macrocell Interface (UTMI) specification. It supports 480Mbps transfer rate, while remaining backward compatible with USB 1.1 legacy protocol at 12Mbps.

All required termination and 5.25V short circuit protection of the DP/DM lines are internal to the chip. The USB3280 also has an integrated 1.8V regulator so that only a 3.3V supply is required.

While transmitting data, the PHY serializes data and generates SYNC and EOP fields. It also performs needed bit stuffing and NRZI encoding. Likewise, while receiving data, the PHY de-serializes incoming data, stripping SYNC and EOP fields and performs bit un-stuffing and NRZI decoding.

Microchip's complimentary and confidential MicroCHECK design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Available in a 36-pin RoHS compliant (6 x 6 x 0.90mm) QFN package

Interface compliant with the UTMI specification (60MHz, 8-bit bidirectional interface)

Only one required power supply (+3.3V)

USB-IF "Hi-Speed" certified to USB 2.0 electrical specification

Supports 480Mbps High Speed (HS) and 12Mbps Full Speed (FS) serial data transmission rates

Integrated 45Ω and 1.5kΩ termination resistors reduce external component count

Internal short circuit protection of DP and DM lines

On-chip oscillator operates with low cost 24MHz crystal

Latch-up performance exceeds 150mA per EIA/JESD 78, Class II

ESD protection levels of 5kV HBM without external protection devices

SYNC and EOP generation on transmit packets and detection on receive packets

NRZI encoding and decoding

Bit stuffing and unstuffing with error detection

Supports the USB suspend state, HS detection, HS Chirp, Reset and Resume

Support for all test modes defined in the USB 2.0 specification

55mA Unconfigured Current (typical) - ideal for bus powered applications

83uA suspend current (typical) - ideal for battery powered applications

Industrial Operating Temperature -40°C to +85°C

Cell Phones
Scanners
External Hard Drives
Digital Still and Video Cameras
Entertainment Devices
Printers

User Guide
