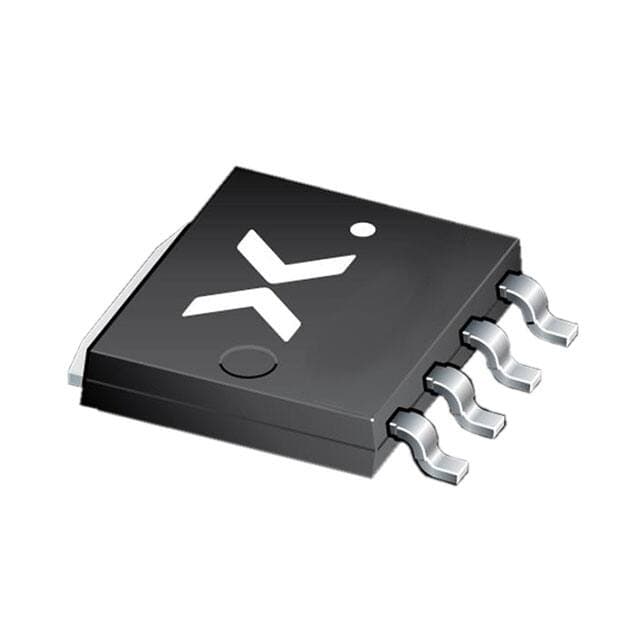

NEXPERIA PSMN0R9-30YLDX
NEXPERIA PSMN0R9-30YLDX

NEXPERIA PSMN0R9-30YLDX

Manufacturer No:

PSMN0R9-30YLDX

Manufacturer:

NEXPERIA

Package:

SOT-1023, 4-LFPAK

Description:

N-Channel Tape & Reel (TR) 0.87m Ω @ 25A, 10V ±20V 7668pF @ 15V 109nC @ 10V SOT-1023, 4-LFPAK

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PSMN0R9-30YLDX information

NEXPERIA PSMN0R9-30YLDX technical specifications, attributes, parameters and parts with similar specifications to NEXPERIA PSMN0R9-30YLDX.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • SOT-1023, 4-LFPAK
  • Surface Mount
  • YES
  • Number of Pins
  • 4
  • Transistor Element Material
  • SILICON
  • Current - Continuous Drain (Id) @ 25℃
  • 300A
  • Drive Voltage (Max Rds On, Min Rds On)
  • 4.5V 10V
  • Number of Elements
  • 1
  • Power Dissipation (Max)
  • 291W
  • Turn Off Delay Time
  • 63 ns
  • Operating Temperature
  • -55°C~150°C TJ
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2015
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 4
  • Additional Feature
  • AVALANCHE RATED, HIGH RELIABILITY
  • Terminal Form
  • GULL WING
  • Pin Count
  • 4
  • Number of Channels
  • 1
  • Element Configuration
  • Single
  • Operating Mode
  • ENHANCEMENT MODE
  • Case Connection
  • DRAIN
  • FET Type
  • N-Channel
  • Transistor Application
  • SWITCHING
  • Rds On (Max) @ Id, Vgs
  • 0.87m Ω @ 25A, 10V
  • Vgs(th) (Max) @ Id
  • 2.2V @ 1mA
  • Input Capacitance (Ciss) (Max) @ Vds
  • 7668pF @ 15V
  • Gate Charge (Qg) (Max) @ Vgs
  • 109nC @ 10V
  • Rise Time
  • 49.8ns
  • Vgs (Max)
  • ±20V
  • Fall Time (Typ)
  • 42.6 ns
  • Continuous Drain Current (ID)
  • 100A
  • Gate to Source Voltage (Vgs)
  • 20V
  • Max Dual Supply Voltage
  • 30V
  • Drain Current-Max (Abs) (ID)
  • 300A
  • Avalanche Energy Rating (Eas)
  • 2987 mJ
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NEXPERIA PSMN0R9-30YLDX.

Datasheets:

PCN Packaging:

RohsStatement:

PSMN0R9-30YLDX Overview


Single MOSFETs transistor is called "avalanche break down", and avalanche energy is applied to MOSFETs, and Single MOSFETs transistor has a rating of 2987 mJ.With either input grounded, the input capacitance parameter, CI, represents the capacitance between the input terminals of the op amp. This device has a maximum input capacitance of 7668pF @ 15V.A device's drain current is its maximum continuous current, and this device has a continuous drain current (ID) of 100A.300A is the drain current of this device, which is the maximum continuous current transistor can carry.Input capacitance charging takes time before drain current conduction begins, so the turn-on delay time is 38.1 ns.Single MOSFETs transistor is the voltage that falls across the gate-source terminal of a FET transistor that is called the gate-source voltage, VGS.This device supports dual supply voltages maximally powered by 30V.

PSMN0R9-30YLDX Features


the avalanche energy rating (Eas) is 2987 mJ
a continuous drain current (ID) of 100A


PSMN0R9-30YLDX Applications


There are a lot of Nexperia USA Inc.
PSMN0R9-30YLDX applications of single MOSFETs transistors.


  • Lighting
  • Uninterruptible Power Supply
  • AC-DC Power Supply
  • Synchronous Rectification for ATX 1 Server I Telecom PSU
  • Motor drives and Uninterruptible Power Supplies
  • Micro Solar Inverter
  • DC/DC converters
  • Power Tools
  • Motor Drives and Uninterruptible Power Supples
  • Synchronous Rectification
