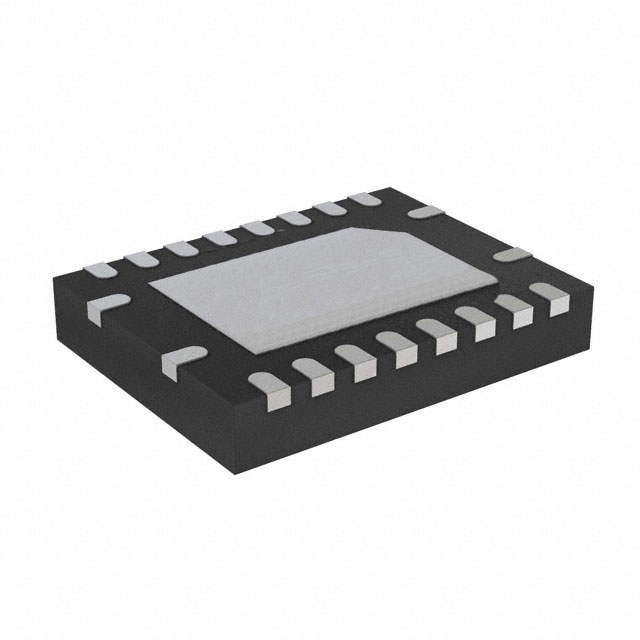

DIODES PI3CH800ZHEX

Manufacturer No:

PI3CH800ZHEX

Manufacturer:

DIODES

Package:

TQFN-20

Description:

Description: Bus Driver, PI3 Series, 1-Func, 8-Bit, True Output, TQFN-20

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PI3CH800ZHEX information

DIODES PI3CH800ZHEX technical specifications, attributes, parameters and parts with similar specifications to DIODES PI3CH800ZHEX.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
DIODES INC

Package Description
TQFN-20

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.39.00.01

Factory Lead Time
8 Weeks

Samacsys Manufacturer
Diodes Incorporated

Additional Feature
ALSO OPERATES AT 3.3 V AND 2.5 V SUPPLY

Family
PI3

JESD-30 Code
R-XQCC-N20

Length
4.5 mm

Logic IC Type
BUS DRIVER

Number of Bits
8

Number of Functions
1

Number of Ports
2

Number of Terminals
20

Operating Temperature-Max
85 °C

Operating Temperature-Min
-40 °C

Output Characteristics
3-STATE

Output Polarity
TRUE

Package Body Material
UNSPECIFIED

Package Code
HVQCCN

Package Style
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Propagation Delay (tpd)
0.3 ns

Seated Height-Max
0.8 mm

Supply Voltage-Max (Vsup)
1.98 V

Supply Voltage-Min (Vsup)
1.62 V

Supply Voltage-Nom (Vsup)
1.8 V

Surface Mount
YES

Temperature Grade
INDUSTRIAL

Terminal Form
NO LEAD

Terminal Pitch
0.5 mm

Terminal Position
QUAD

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Width
3.5 mm

Download datasheets and manufacturer documentation for DIODES PI3CH800ZHEX.

Datasheets:

DIOD-S-A0004565325-1.pdf

PI3CH800ZHEX Overview

Due to the lack of space on the board, digital switch is provided in the 20-WFQFN Exposed Pad.It is packaged according to the Tape & Reel (TR) method.The mounting method digital switch ic uses is Surface Mount.A digital IC Bus Switch is used as the analog component of the multiplexers.If the operating temperature is maintained at -40°C~85°C TA, turn signal switch will not be susceptible to external factors.Using a 1.8V 2.5V 3.3V supply voltage provides digital controlled switch's superior flexibility for designers.There are 20 terminations included in its basic configuration.In this case, 1.8V is the voltage supplied to the multiplexer's system.NO LEAD represents the end of conductors.The logic switch is a member of the PI3 family.In this signal multiplexer, there are 8 bits that are provided.This signal switching operates at a resistance of 2.Additionally, ALSO OPERATES AT 3.3 V AND 2.5 V SUPPLY has improved characteristics.

PI3CH800ZHEX Features

Supplied in the 20-WFQFN Exposed Pad package
ALSO OPERATES AT 3.3 V AND 2.5 V SUPPLY

PI3CH800ZHEX Applications

There are a lot of Diodes Incorporated
PI3CH800ZHEX Signal Switches / Multiplexers / Decoders applications.

Implementing boolean functions with multiple variables
Data collection system
Audio transmission
Video transmission
Image transmission
Recording transmission
Combinational circuit
Logic gates for other digital devices
Signal router
Data communication
