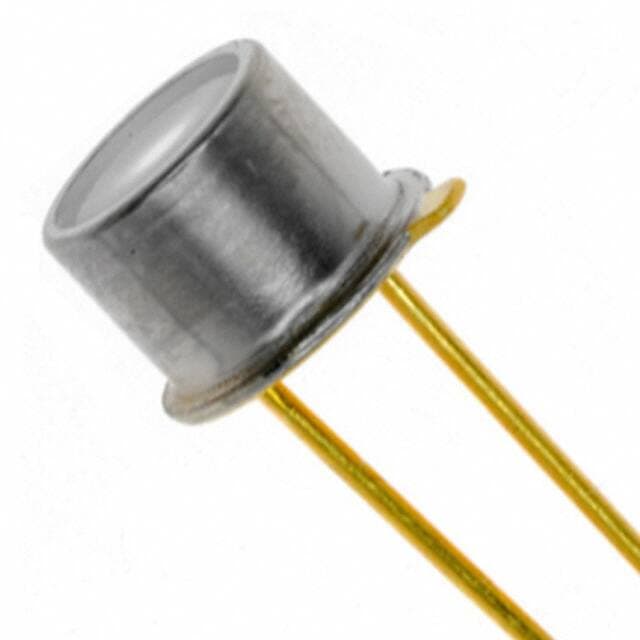

Advanced Photonix PDU-V104

Manufacturer No:

PDU-V104

Manufacturer:

Advanced Photonix

Package:

TO-46-2

Description:

Through Hole -40°C~125°C Bulk Wavelength: 950nm TO-46-2 75V 3.09mm2 13ns 5pA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PDU-V104 information

Advanced Photonix PDU-V104 technical specifications, attributes, parameters and parts with similar specifications to Advanced Photonix PDU-V104.

Type
Parameter

Factory Lead Time
14 Weeks

Mounting Type
Through Hole

Package / Case
TO-46-2

Housing Material
Metal

Operating Temperature
-40°C~125°C

Packaging
Bulk

Published
2005

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Diode Type
PIN

Viewing Angle
65°

Response Time
13ns

Voltage - DC Reverse (Vr) (Max)
75V

Breakdown Voltage
10V

Rise Time
450ns

Max Reverse Voltage (DC)
75V

Wavelength
950nm

Dark Current
5pA

Spectral Range
350nm ~ 1100nm

Active Area
3.09mm2

Current - Dark (Typ)
5pA

Responsivity @ nm
0.18 A/W @ 365nm

Height
3.81mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Advanced Photonix PDU-V104.

Datasheets:

advancedphotonix-pduv104-datasheets-5825.pdf

PDU-V104 Overview

To protect the photodiodes, they are packed in the Bulk. Photodiodes are protected by TO-46-2 packages in order to ensure their safety. When reverse-bias is applied continuously, the photodiodes are able to withstand only 75V voltage. A reverse-bias photodiode shouldn't exceed 75V continuously in reverse-bias mode. While photodiodes are operating, the temperature should not exceed 125°C. But the photodiodes should operate at a temperature of -40°C. Ensure photodiodes work by setting the breakdown voltage to 10V. A photodiode occurs even at 5pA current without light input.

PDU-V104 Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~125°C
Packaging: Bulk
Diode Type: PIN
Spectral Range: 350nm ~ 1100nm
Response Time: 13ns
Viewing Angle: 65°
Responsivity @ nm: 0.18 A/W @ 365nm

PDU-V104 Applications

There are a lot of Advanced Photonix
PDU-V104 Photodiodes applications.

Light Barriers
Vision Controls
Measurement Levelling
High speed photo detectors
Health Monitoring
Heart Rate Monitoring
Pulse Oximetry
Pure UV-C Monitoring
Sterilization Lamp Monitoring
Optical Analytics
