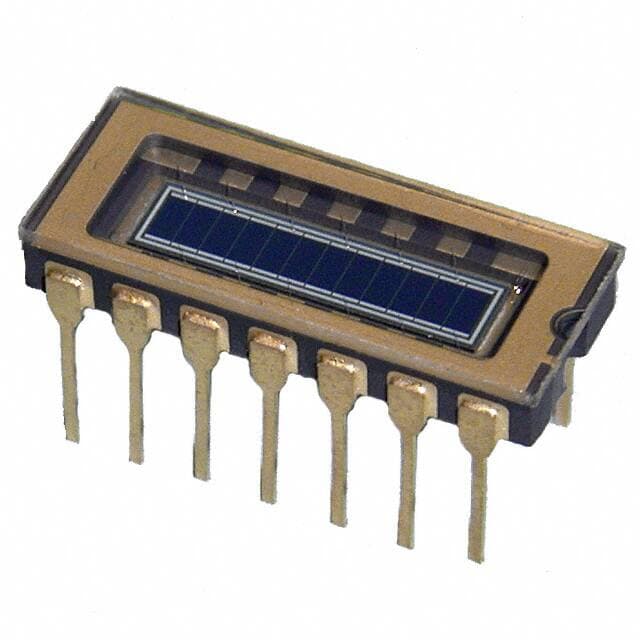

Advanced Photonix 219-51-03-301

Manufacturer No:

219-51-03-301

Manufacturer:

Advanced Photonix

Package:

14-CDIP (0.300, 7.62mm) Window

Description:

Through Hole -40°C~75°C Bulk Wavelength: 660nm 14-CDIP (0.300, 7.62mm) Window 50V 1.969mm2 (x12) 13ns

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

219-51-03-301 information

Advanced Photonix 219-51-03-301 technical specifications, attributes, parameters and parts with similar specifications to Advanced Photonix 219-51-03-301.

Type
Parameter

Factory Lead Time
14 Weeks

Mounting Type
Through Hole

Package / Case
14-CDIP (0.300, 7.62mm) Window

Operating Temperature
-40°C~75°C

Packaging
Bulk

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Response Time
13ns

Voltage - DC Reverse (Vr) (Max)
50V

Wavelength
660nm

Spectral Range
350nm ~ 1100nm

Active Area
1.969mm2 (x12)

Current - Dark (Typ)
2.7nA

Color - Enhanced
Blue

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Advanced Photonix 219-51-03-301.

Datasheets:

advancedphotonix-2195103301-datasheets-5975.pdf

219-51-03-301 Overview

The Bulk protects these photodiodes from damage. In order to ensure safety, the photodiodes are packaged in 14-CDIP (0.300, 7.62mm) Window packages. The maximum voltage the photodiodes can withstand in reverse-bias mode is 50V.

219-51-03-301 Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~75°C
Packaging: Bulk
Spectral Range: 350nm ~ 1100nm
Response Time: 13ns

219-51-03-301 Applications

There are a lot of Advanced Photonix
219-51-03-301 Photodiodes applications.

Photo interrupters
Shaft encoders
Electronic Equipment
Industrial Automation
Machine Controls
Light Barriers
Vision Controls
Measurement Levelling
High speed photo detectors
Health Monitoring
