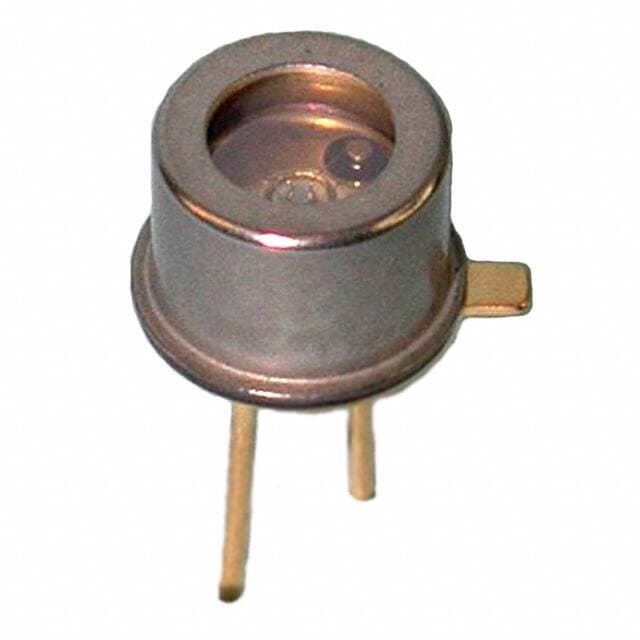

Advanced Photonix PDU-G102B

Manufacturer No:

PDU-G102B

Manufacturer:

Advanced Photonix

Package:

TO-46-2

Description:

Through Hole -30°C~85°C Tray Wavelength: 270 nm TO-46-2 5V 0.076mm2 10ns 50pA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PDU-G102B information

Advanced Photonix PDU-G102B technical specifications, attributes, parameters and parts with similar specifications to Advanced Photonix PDU-G102B.

Type
Parameter

Mounting Type
Through Hole

Package / Case
TO-46-2

Operating Temperature
-30°C~85°C

Packaging
Tray

Published
2005

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
85°C

Min Operating Temperature
-30°C

Viewing Angle
61°

Response Time
10ns

Voltage - DC Reverse (Vr) (Max)
5V

Rise Time
10ns

Max Reverse Voltage (DC)
5V

Wavelength
270 nm

Dark Current
50pA

Spectral Range
200nm ~ 320nm

Active Area
0.076mm2

Current - Dark (Typ)
50pA

Responsivity @ nm
0.1 A/W @ 350nm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Advanced Photonix PDU-G102B.

Datasheets:

advancedphotonix-pdug102b-datasheets-0252.pdf

PDU-G102B Overview

Photodiodes are protected from damage by the Tray package. In order to ensure safety, the photodiodes are packaged in TO-46-2 packages. A photodiode can withstand a maximum voltage of 5V if it is continuously reverse-biased. Under reverse-bias mode, the voltage of the photodiodes should not exceed 5V. For photodiodes to function properly, the temperature should not exceed 85°C. There should, however, be a minimum operating temperature of -30°C for the photodiodes. In the absence of light input, the photodiode exhibits a current of 50pA.

PDU-G102B Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -30°C~85°C
Packaging: Tray
Spectral Range: 200nm ~ 320nm
Response Time: 10ns
Viewing Angle: 61°
Responsivity @ nm: 0.1 A/W @ 350nm

PDU-G102B Applications

There are a lot of Advanced Photonix
PDU-G102B Photodiodes applications.

Shaft encoders
Electronic Equipment
Industrial Automation
Machine Controls
Light Barriers
Vision Controls
Measurement Levelling
High speed photo detectors
Health Monitoring
Heart Rate Monitoring
