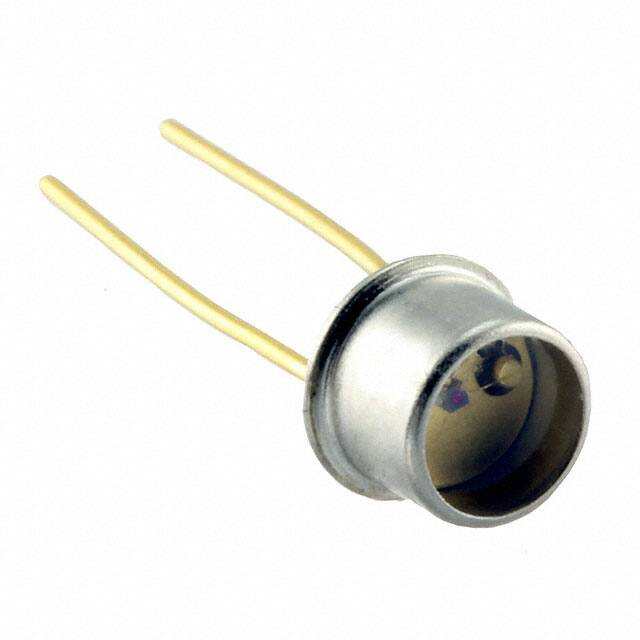

Advanced Photonix 039-121-011

Manufacturer No:

039-121-011

Manufacturer:

Advanced Photonix

Package:

Description:

Through Hole 0°C~85°C Bulk 20V 5ns

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

039-121-011 information

Advanced Photonix 039-121-011 technical specifications, attributes, parameters and parts with similar specifications to Advanced Photonix 039-121-011.

Type
Parameter

Factory Lead Time
14 Weeks

Mounting Type
Through Hole

Operating Temperature
0°C~85°C

Packaging
Bulk

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Response Time
5ns

Voltage - DC Reverse (Vr) (Max)
20V

Spectral Range
450nm ~ 1700nm

Current - Dark (Typ)
30nA

Responsivity @ nm
0.35 A/W @ 650nm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Advanced Photonix 039-121-011.

Datasheets:

advancedphotonix-039121011-datasheets-5847.pdf

039-121-011 Overview

It is important to note that these photodiodes are packaged in Bulk to prevent damage. The maximum voltage that the photodiodes can tolerate in reverse-biased mode is 20V over a continuous period of time.

039-121-011 Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: 0°C~85°C
Packaging: Bulk
Spectral Range: 450nm ~ 1700nm
Response Time: 5ns
Responsivity @ nm: 0.35 A/W @ 650nm

039-121-011 Applications

There are a lot of Advanced Photonix
039-121-011 Photodiodes applications.

Photo interrupters
Shaft encoders
Electronic Equipment
Industrial Automation
Machine Controls
Light Barriers
Vision Controls
Measurement Levelling
High speed photo detectors
Health Monitoring
