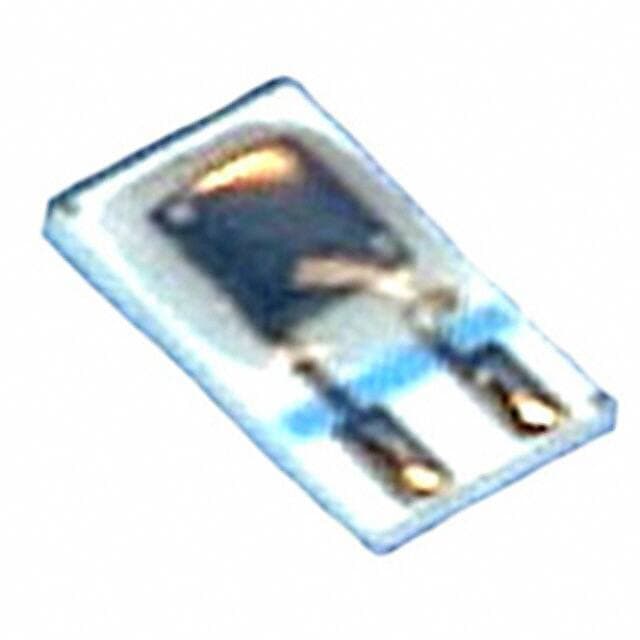

Advanced Photonix PDB-C165

Manufacturer No:

PDB-C165

Manufacturer:

Advanced Photonix

Package:

2-SMD, No Lead

Description:

Surface Mount -40°C~80°C Bulk Wavelength: 950nm 2-SMD, No Lead 8.53mm2 1nA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PDB-C165 information

Advanced Photonix PDB-C165 technical specifications, attributes, parameters and parts with similar specifications to Advanced Photonix PDB-C165.

Type
Parameter

Factory Lead Time
14 Weeks

Mounting Type
Surface Mount

Package / Case
2-SMD, No Lead

Operating Temperature
-40°C~80°C

Packaging
Bulk

Published
2005

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Diode Type
PIN

Breakdown Voltage
75V

Rise Time
13ns

Max Reverse Voltage (DC)
75V

Wavelength
950nm

Dark Current
1nA

Spectral Range
350nm ~ 1100nm

Active Area
8.53mm2

Current - Dark (Typ)
1nA

Color - Enhanced
Blue

Responsivity @ nm
0.17 A/W @ 450nm

Length
5.59mm

Width
3.18mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Advanced Photonix PDB-C165.

PDB-C165 Overview

In order to protect these photodiodes from damage, they are packaged in the Bulk. It is necessary to place the photodiodes into 2-SMD, No Lead packages in order to protect them from damage. Continuously reverse-bias the photodiodes shouldn't exceed 75V. For photodiodes to work, breakdown voltage should be 75V. Without light, a photodiode has 1nA current.

PDB-C165 Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~80°C
Packaging: Bulk
Diode Type: PIN
Spectral Range: 350nm ~ 1100nm
Responsivity @ nm: 0.17 A/W @ 450nm

PDB-C165 Applications

There are a lot of Advanced Photonix
PDB-C165 Photodiodes applications.

Electronic Equipment
Industrial Automation
Machine Controls
Light Barriers
Vision Controls
Measurement Levelling
High speed photo detectors
Health Monitoring
Heart Rate Monitoring
Pulse Oximetry
