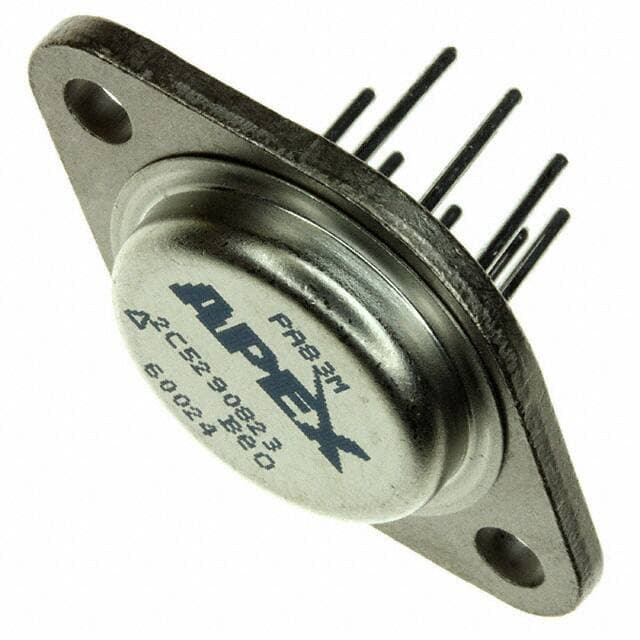

APEX PA83M

Manufacturer No:

PA83M

Manufacturer:

APEX

Package:

TO-3-8

Description:

75mA per Channel 5pA 130 dB Instrumentational OP Amps 0.00005μA 30V~300V ±15V~150V PA83 2 Pins TO-3-8

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PA83M information

APEX PA83M technical specifications, attributes, parameters and parts with similar specifications to APEX PA83M.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-3-8

Operating Temperature
-55°C~125°C

Packaging
Tube

Series
Apex Precision Power®

Published
2013

JESD-609 Code
e0

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Subcategory
Operational Amplifiers

Technology
BIPOLAR

Terminal Position
BOTTOM

Terminal Form
PIN/PEG

Number of Functions
1

Supply Voltage
150V

Base Part Number
PA83

Pin Count
2

JESD-30 Code
O-MBFM-P8

Qualification Status
Not Qualified

Operating Supply Current
6mA

Slew Rate
30V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
Power

Common Mode Rejection Ratio
130 dB

Current - Input Bias
5pA

Voltage - Supply, Single/Dual (±)
30V~300V ±15V~150V

Output Current per Channel
75mA

Input Offset Voltage (Vos)
1.5mV

Gain Bandwidth Product
5MHz

Neg Supply Voltage-Nom (Vsup)
-150V

Unity Gain BW-Nom
5000 kHz

Average Bias Current-Max (IIB)
0.00005μA

Low-Offset
NO

Frequency Compensation
YES

Low-Bias
YES

Bias Current-Max (IIB) @25C
0.00005μA

Screening Level
MIL-STD-883 Class B (Modified)

Power
YES

Voltage Gain-Min
63000

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for APEX PA83M.

Datasheets:

apexmicrotechnology-pa83m-datasheets-2795.pdf

apexmicrotechnology-sa50ce-datasheets-3313.pdf

PA83M Overview

The linear amplifier is packaged in a TO-3-8 case. This is a Power type op amp. Linear amplifier is delivered in a Tube case. The number of terminations approaches 8. Buffer amplifier has a total of 2 pins. Please take in mind that this instrumentation amplifier should be run at 150V. To be specific, this instrumentation amplifier is a type of Operational Amplifiers. Regarding input offset voltage, op amp rates 1.5mV. Through Hole is the recommended mounting type for this linear amplifier. With regard to operating temperature, this op amp functions well at -55°C~125°C. This op amp can operate from a supply current at 6mA. There are 1 circuits on this op amp. Apex Precision Power® corresponds to the op amp's series. The minimum voltage gain this buffer op amp is able to conduct is 63000.
