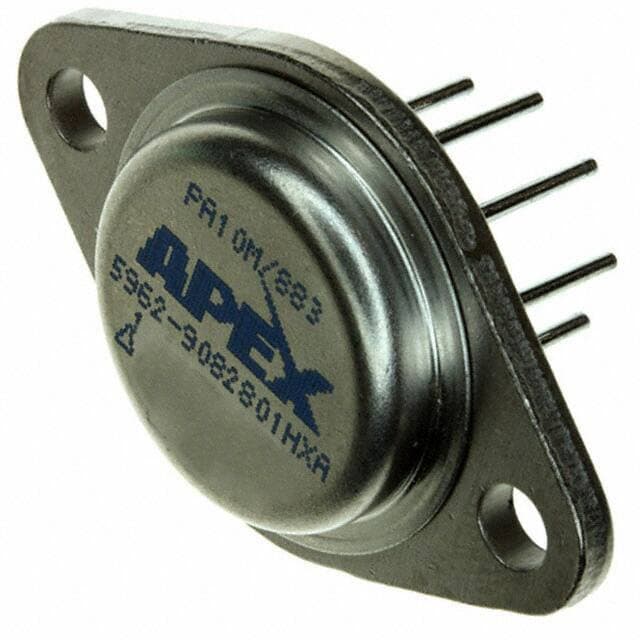

APEX PA10M/883

Manufacturer No:

PA10M/883

Manufacturer:

APEX

Package:

TO-3-8

Description:

12nA 74 dB Instrumentational OP Amps 0.03μA 20V~90V ±10V~45V PA10 8 Pins TO-3-8

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PA10M/883 information

APEX PA10M/883 technical specifications, attributes, parameters and parts with similar specifications to APEX PA10M/883.

Type
Parameter

Factory Lead Time
8 Weeks

Mounting Type
Through Hole

Package / Case
TO-3-8

Surface Mount
NO

Operating Temperature
-55°C~125°C

Packaging
Tube

Series
Apex Precision Power®

Published
2013

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Subcategory
Operational Amplifier

Technology
HYBRID

Terminal Position
BOTTOM

Terminal Form
PIN/PEG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
40V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
PA10

JESD-30 Code
O-MBFM-P8

Qualification Status
Not Qualified

Power Supplies
+-40V

Number of Circuits
1

Current - Supply
15mA

Slew Rate
3V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
Power

Common Mode Rejection Ratio
74 dB

Current - Input Bias
12nA

Voltage - Supply, Single/Dual (±)
20V~90V ±10V~45V

Gain Bandwidth Product
4MHz

Neg Supply Voltage-Nom (Vsup)
-40V

Unity Gain BW-Nom
4000 kHz

Average Bias Current-Max (IIB)
0.03μA

Low-Offset
NO

Frequency Compensation
YES

Supply Voltage Limit-Max
50V

Voltage - Input Offset
2mV

Current - Output / Channel
5A

Bias Current-Max (IIB) @25C
0.03μA

Screening Level
38535Q/M;38534H;883B

Neg Supply Voltage-Max (Vsup)
-50V

Download datasheets and manufacturer documentation for APEX PA10M/883.

Datasheets:

apexmicrotechnology-pa10m-datasheets-2737.pdf

apexmicrotechnology-sa50ce-datasheets-3313.pdf

PA10M/883 Overview

In the package, you will find a TO-3-8-case to contain the op amp ic. The instrumentation amplifier in this picture is of the Power-type. A Tube case is used for delivering the op amp. During the past two weeks, there have been close to 8 terminations. A total of 8 pins are located on this board. This linear amplifier should be powered by an 40V battery. This particular linear amplifier is a type of Operational Amplifier device, to be precise. For this electrical component, Through Hole is the recommended mounting type. According to the manufacturer, this buffer op amp works well at -55°C~125°C , which is a good operating temperature. A instrumentation amplifier like this has 1 circuits. There is a recommendation that this electrical part be used with a supply with 15mA current rating. In this case, Apex Precision Power® represents the instrumentation amplifiers' series number. In this op amp ic, the minimum voltage gain is 63000.

PA10M/883 Features

8 Pins
supply voltage of 40V

PA10M/883 Applications

There are a lot of Apex Microtechnology
PA10M/883 Instrumentational OP Amps applications.

Multiplication circuits
Division circuits
Precision measurement
Power control
Information processing
Weak signal detection
Signal amplification
Signal filtering
Signal operation
Video computer boards
