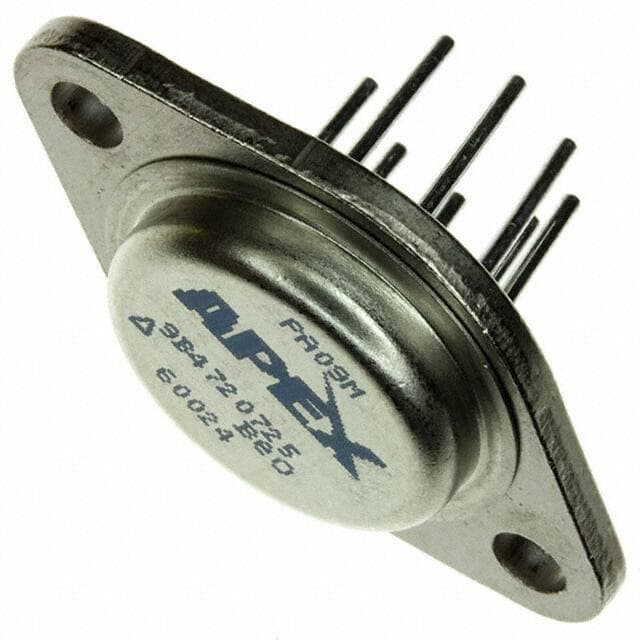

APEX PA09M

Manufacturer No:

PA09M

Manufacturer:

APEX

Package:

TO-3-8

Description:

8 Terminations 24V~80V ±12V~40V PA09 Video Amps Modules Apex Precision Power® Series 1 Functions 220V/?s

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PA09M information

APEX PA09M technical specifications, attributes, parameters and parts with similar specifications to APEX PA09M.

Type
Parameter

Factory Lead Time
10 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
TO-3-8

Packaging
Tube

Series
Apex Precision Power®

Published
2013

JESD-609 Code
e0

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Applications
General Purpose

Subcategory
Operational Amplifiers

Technology
MOS

Terminal Position
BOTTOM

Terminal Form
PIN/PEG

Number of Functions
1

Supply Voltage
35V

Base Part Number
PA09

Pin Count
2

JESD-30 Code
O-MBFM-P8

Qualification Status
Not Qualified

Power Supplies
+-35V

Temperature Grade
MILITARY

Number of Circuits
1

Operating Supply Current
70mA

Slew Rate
220V/?s

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
OPERATIONAL AMPLIFIER

Common Mode Rejection Ratio
64 dB

Voltage - Supply, Single/Dual (±)
24V~80V ±12V~40V

Output Current per Channel
4.5A

Neg Supply Voltage-Nom (Vsup)
-35V

Unity Gain BW-Nom
150000 kHz

Low-Offset
NO

Frequency Compensation
NO

Supply Voltage Limit-Max
40V

Low-Bias
YES

Screening Level
MIL-STD-883 Class B (Modified)

Neg Supply Voltage-Max (Vsup)
-40V

Input Offset Voltage-Max
3000?V

Power
YES

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for APEX PA09M.

Datasheets:

apexmicrotechnology-pa09m883-datasheets-1437.pdf

apexmicrotechnology-sa50ce-datasheets-3313.pdf

PA09M Overview

Class d amplifier's packaged in the form of a Tube.For the sake of reducing space, class d amp is accessible in the TO-3-8 package.Because of audio amplifiers high performance, audio amplifier is an excellent choice for General Purpose.audio power amplifier is mounted on the PCB based on the method of Surface Mount.Audio ic's enhanced flexibility is achieved with the usage of 1 circuits.It has a base part number of PA09 that can be used to audio amp.Audio digital amplifier has a pin count of 2 on audio digital amplifier.Digital amplifier is made up of 8 terminations.This audio power amplifier is included in Operational Amplifiers.Audio amplifier operates on a supply current of 70mA.Due to the 35V supply voltage, high efficiency is possible.Surface Mount is used as its mounting method.It is suggested that the working temperature be at least -55°C.The audio amplifier owns OPERATIONAL AMPLIFIER amplifier type.It belongs to the Apex Precision Power® series of FPGA.
