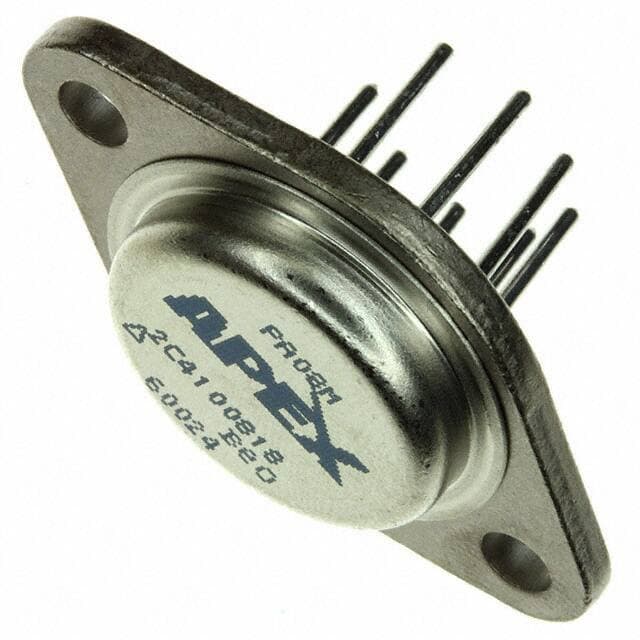

APEX PA08M

Manufacturer No:

PA08M

Manufacturer:

APEX

Package:

TO-3-8

Description:

150mA per Channel 5pA 130 dB Instrumentational OP Amps 0.00005μA 30V~300V ±15V~150V PA08 2 Pins TO-3-8

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PA08M information

APEX PA08M technical specifications, attributes, parameters and parts with similar specifications to APEX PA08M.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-3-8

Operating Temperature
-55°C~125°C

Packaging
Tube

Series
Apex Precision Power®

Published
2013

JESD-609 Code
e0

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Subcategory
Operational Amplifier

Technology
BIPOLAR

Terminal Position
BOTTOM

Terminal Form
PIN/PEG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
100V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
PA08

JESD-30 Code
O-MBFM-P8

Qualification Status
Not Qualified

Number of Circuits
1

Operating Supply Current
6mA

Slew Rate
20V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
Power

Common Mode Rejection Ratio
130 dB

Current - Input Bias
5pA

Voltage - Supply, Single/Dual (±)
30V~300V ±15V~150V

Output Current per Channel
150mA

Input Offset Voltage (Vos)
500μV

Gain Bandwidth Product
5MHz

Neg Supply Voltage-Nom (Vsup)
-100V

Unity Gain BW-Nom
5000 kHz

Average Bias Current-Max (IIB)
0.00005μA

Low-Offset
NO

Frequency Compensation
YES

Low-Bias
YES

Micropower
NO

Bias Current-Max (IIB) @25C
0.00005μA

Programmable Power
NO

Screening Level
MIL-STD-883 Class B (Modified)

Download datasheets and manufacturer documentation for APEX PA08M.

Datasheets:

apexmicrotechnology-pa08m883-datasheets-6269.pdf

apexmicrotechnology-sa50ce-datasheets-3313.pdf

PA08M Overview

Op amp is packaged in TO-3-8 case. Op amps are Power types of amplifier on the chip. Instrumentation amplifier is delivered in a Tube case. The number of terminations approaches 8. Linear amplifier has a total of 2 pins. Please take in mind that op amp should be run at 100V. Instrumentation amplifier is a part of Operational Amplifier. Regarding input offset voltage, buffer amplifier rates 500μV voltage. Through Hole is the recommended mounting type of operational amplifiers. With regard to operating temperature, op amp ranges -55°C~125°C. Operational amplifier can operate supply current at 6mA. There are 1 circuits on op amps. Apex Precision Power® corresponds to linear amplifier's series. To conduct electronic part voltage gain higher than 63000.

PA08M Features

2 Pins
supply voltage of 100V

PA08M Applications

There are a lot of Apex Microtechnology
PA08M Instrumentational OP Amps applications.

Proportional operation circuits
Inverse/same-phase proportional circuit
Addition operation circuits
Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
