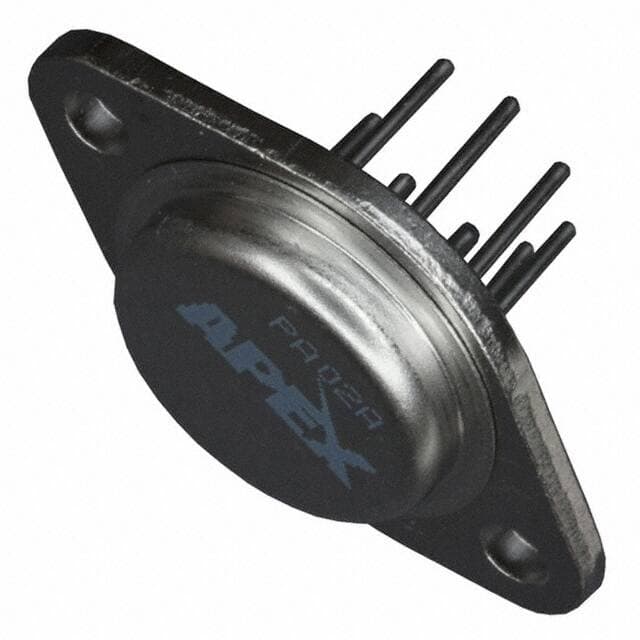

APEX PA02A

Manufacturer No:

PA02A

Manufacturer:

APEX

Package:

TO-3-8

Description:

5A per Channel 25pA 100 dB Instrumentational OP Amps 14V~38V ±7V~19V PA02 2 Pins TO-3-8

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PA02A information

APEX PA02A technical specifications, attributes, parameters and parts with similar specifications to APEX PA02A.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-3-8

Number of Pins
8

Operating Temperature
-55°C~125°C

Packaging
Tube

Series
Apex Precision Power®

Published
2011

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
Nickel (Ni)

Subcategory
Operational Amplifier

Technology
HYBRID

Terminal Position
BOTTOM

Terminal Form
PIN/PEG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
15V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
PA02

Qualification Status
Not Qualified

Number of Circuits
1

Operating Supply Current
27mA

Supply Current-Max
37mA

Slew Rate
20V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
Power

Common Mode Rejection Ratio
100 dB

Current - Input Bias
25pA

Voltage - Supply, Single/Dual (±)
14V~38V ±7V~19V

Output Current per Channel
5A

Input Offset Voltage (Vos)
1mV

Gain Bandwidth Product
4.5MHz

Neg Supply Voltage-Nom (Vsup)
-15V

Unity Gain BW-Nom
4500 kHz

Voltage Gain
103dB

Low-Offset
NO

Frequency Compensation
YES

Low-Bias
YES

Dual Supply Voltage
15V

Power
YES

Common-mode Reject Ratio-Min
70 dB

Height
6.4mm

Download datasheets and manufacturer documentation for APEX PA02A.

Datasheets:

apexmicrotechnology-pa02-datasheets-1849.pdf

apexmicrotechnology-sa50ce-datasheets-3313.pdf

PA02A Overview

There is a TO-3-8 case in which the instrumentation amplifier is packaged. Buffer amps of this type are called Power-types. A Tube case is used to deliver the buffer op amp. The number of terminations is approaching the 8 mark. The total number of pins on linear amplifier is 2. The linear amplifier should be run at 15V at all times, so please keep that in mind when using it. In order to be more specific, this instrumentation amplifier is one of the types of Operational Amplifier devices. 8 pins are included on the operational amplifiers. As far as the input offset voltage is concerned, linear amplifier rates at 1mV. For this electronic part, it is recommended that you mount it with type Through Hole. It is important to note that this linear amplifier works well at a temperature of -55°C~125°C when it comes to operating temperatureIt is possible to operate this buffer amplifier from a supply current of 27mA . 103dB should be the voltage gain. A linear amplifier like this has 1 circuits on it. The Apex Precision Power® represents the op amp's series number.

PA02A Features

2 Pins
supply voltage of 15V
103dB voltage gain

PA02A Applications

There are a lot of Apex Microtechnology
PA02A Instrumentational OP Amps applications.

Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
