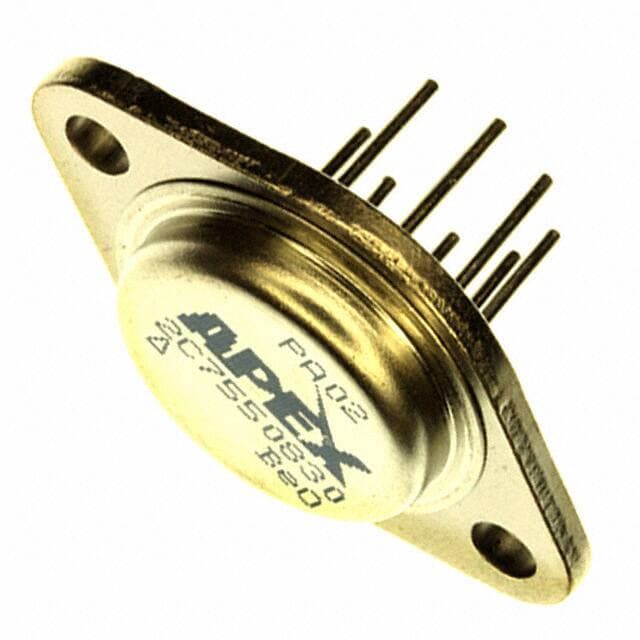

APEX PA02

Manufacturer No:

PA02

Manufacturer:

APEX

Package:

TO-3-8

Description:

5A per Channel 50pA 100 dB Instrumentational OP Amps 0.0002μA 14V~38V ±7V~19V PA02 2 Pins TO-3-8

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PA02 information

APEX PA02 technical specifications, attributes, parameters and parts with similar specifications to APEX PA02.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-3-8

Number of Pins
8

Operating Temperature
-25°C~85°C

Packaging
Bulk

Series
Apex Precision Power®

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Terminal Finish
NICKEL (NI)

Subcategory
Operational Amplifier

Technology
HYBRID

Terminal Position
BOTTOM

Terminal Form
PIN/PEG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
15V

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
PA02

Pin Count
2

Qualification Status
Not Qualified

Operating Supply Current
27mA

Nominal Supply Current
27mA

Slew Rate
20V/μs

Architecture
VOLTAGE-FEEDBACK

Amplifier Type
Power

Common Mode Rejection Ratio
100 dB

Current - Input Bias
50pA

Voltage - Supply, Single/Dual (±)
14V~38V ±7V~19V

Output Current per Channel
5A

Input Offset Voltage (Vos)
5mV

Bandwidth
350 kHz

Gain Bandwidth Product
4.5MHz

Neg Supply Voltage-Nom (Vsup)
-15V

Unity Gain BW-Nom
4500 kHz

Voltage Gain
103dB

Average Bias Current-Max (IIB)
0.0002μA

Low-Offset
NO

Frequency Compensation
YES

Low-Bias
YES

Bias Current-Max (IIB) @25C
0.0002μA

Dual Supply Voltage
15V

Power
YES

Max Junction Temperature (Tj)
150°C

Download datasheets and manufacturer documentation for APEX PA02.

Datasheets:

apexmicrotechnology-pa02-datasheets-1849.pdf

PA02 Overview

The linear amplifier is packaged in a TO-3-8 case. This is a Power type op amp. Linear amplifier is delivered in a Bulk case. The number of terminations approaches 8. Buffer amplifier has a total of 2 pins. Please take in mind that this instrumentation amplifier should be run at 15V. To be specific, this instrumentation amplifier is a type of Operational Amplifier. The buffer op amp includes 8 pins. Regarding input offset voltage, op amp rates 5mV. Through Hole is the recommended mounting type for this linear amplifier. With regard to operating temperature, this op amp functions well at -25°C~85°C. This op amp can operate from a supply current at 27mA. Voltage gain should remain at 103dB. There are 1 circuits on this op amp. Apex Precision Power® corresponds to the op amp's series.

PA02 Features

2 Pins
supply voltage of 15V
103dB voltage gain

PA02 Applications

There are a lot of Apex Microtechnology
PA02 Instrumentational OP Amps applications.

Inverse/same-phase proportional circuit
Addition operation circuits
Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
