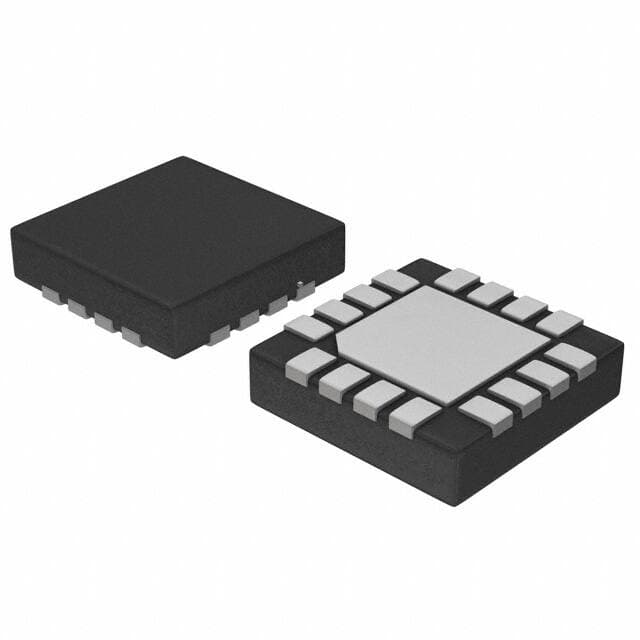

ONSEMI NCP5604AMTR2G
Manufacturer No:
NCP5604AMTR2G
Manufacturer:
Package:
16-WFQFN Exposed Pad
Description:
3/5V 0.5mm PMIC NCP5604 16 Pin 1MHz 3.3V 16-WFQFN Exposed Pad
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
NCP5604AMTR2G information
ONSEMI NCP5604AMTR2G technical specifications, attributes, parameters and parts with similar specifications to ONSEMI NCP5604AMTR2G.
- Type
- Parameter
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 16-WFQFN Exposed Pad
- Number of Pins
- 16
- Operating Temperature
- -40°C~85°C TA
- Packaging
- Tape & Reel (TR)
- Published
- 2006
- JESD-609 Code
- e3
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 16
- Termination
- SMD/SMT
- ECCN Code
- EAR99
- Type
- DC DC Regulator
- Terminal Finish
- Tin (Sn)
- Applications
- Backlight, Camera Flash
- Subcategory
- Display Drivers
- Terminal Position
- QUAD
- Terminal Form
- NO LEAD
- Peak Reflow Temperature (Cel)
- NOT SPECIFIED
- Number of Functions
- 1
- Supply Voltage
- 3.3V
- Terminal Pitch
- 0.5mm
- Frequency
- 1MHz
- Base Part Number
- NCP5604
- Pin Count
- 16
- Number of Outputs
- 4
- Qualification Status
- Not Qualified
- Efficiency
- 87 %
- Max Output Current
- 120mA
- Power Supplies
- 3/5V
- Max Supply Voltage
- 5.5V
- Min Supply Voltage
- 2.7V
- Power Dissipation
- 320mW
- Output Current
- 100mA
- Max Supply Current
- 1mA
- Max Output Voltage
- 6V
- Voltage - Output
- 4.8V~6V
- Topology
- Switched Capacitor (Charge Pump)
- Min Input Voltage
- 2.7V
- Max Input Voltage
- 5.5V
- Internal Switch(s)
- Yes
- Number of Drivers
- 1
- Dimming
- Analog, PWM
- Number of Segments
- 4
- Switching Frequency
- 200kHz
- Multiplexed Display Capability
- NO
Download datasheets and manufacturer documentation for ONSEMI NCP5604AMTR2G.
Datasheets:
PCN Obsolescence/ EOL:
ReachStatement:
NCP5604AMTR2G Overview
The 16-WFQFN Exposed Pad package saves space on the board. These LED drivers have 4 outputs.The mounting method adopted is Surface Mount.Initially, it emerges as a DC DC Regulator with high efficiency and a high degree of reliability.-40°C~85°C TA is the operating temperature and it works fine.The benefits are considerable for Backlight, Camera Flash.This system operates at 1MHz frequency.For its operation, 16 terminations are designed.To form its configuration, there are 16 pins.The number of segments is 4.Surface Mount is mounted on it.A base part number of NCP5604 is associated with this LED driver.As a maximum value, 5.5V is acceptable.The output voltage of this device is 4.8V~6V.A total of 16 pins are present on this device.In addition, it can be classified as Display Drivers according to its characteristics.The minimum input voltage for this device is 2.7V.The system works with a minimum supply voltage of 2.7V in order to achieve maximum efficiency.5.5V is the maximum value of supply current that can be used.As long as the supply current is less than 1mA, this device can provide high efficiency.The load is capable of receiving 100mA current.Electronic components can function properly when their switching frequency is set to 200kHz.A LED driver that operates at 120mA output current provides all the benefits of a LED driver.If the output voltage exceeds 6V, it should be corrected.
NCP5604AMTR2G Features
Available in the 16-WFQFN Exposed Pad package
Operating temperature of -40°C~85°C TA
Frequency of 1MHz
Supply voltage of 3.3V
Switching frequency of 200kHz
NCP5604AMTR2G Applications
There are a lot of ON Semiconductor
NCP5604AMTR2G LED Driver ICs applications.
- Stage and Studio lighting
- Refrigeration lighting
- Portable lighting
- Gallery lighting
- Museum lighting
- High-end retail lighting
- Medical surgery lighting
- Replacement lamps
- Panel lighting
- Down lights
